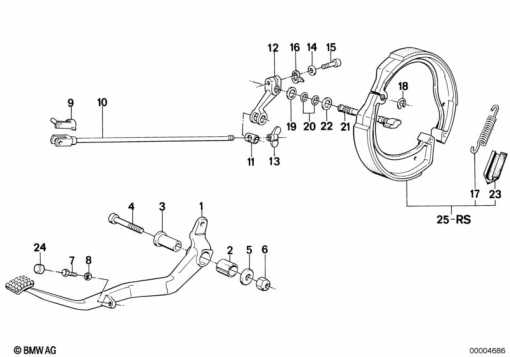

Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 12 1 454 091 | BRAKE LEVER | - | |
| 2 | 35 21 1 454 682 | BUSH | - | |
| 3 | 35 21 1 454 683 | BUSHING | - | |
| 4 | 07 11 9 901 107 | FILLISTER-HEAD SCREW - M10X60-8.8 | - | |
| 5 | 12 11 8 004 250 | WASHER | - | |
| 6 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | - | |
| 7 | 07 11 9 904 116 | HEX BOLT - M6X30-8.8-ZNS3 | - | |
07 11 9 913 589 | HEX BOLT - M6X25Alternative for position 7 | - | ||
07 11 9 913 589 | HEX BOLT - M6X25Alternative for position 7 | - | ||
| 8 | 07 11 9 921 054 | HEX NUT - M6-04-2-ZN | - | |
| 9 | 07 12 9 934 955 | PIN - D=6X24 | - | |
| 10 | 35 21 1 450 743 | PULL ROD | - | |
| 11 | 34 21 4 044 141 | 0.03 | - | |
| 12 | 35 21 1 454 601 | BRAKE LEVER | - | |
| 13 | 35 21 1 232 137 | WING NUT | - | |
| 14 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | - | |
| 15 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 | - | |
| 16 | 35 21 1 454 765 | SHACKLE | - | |
| 17 | 34 21 1 454 996 | TENSION SPRING | - | |
34 21 1 457 091 | TENSION SPRINGAlternative for position 17 | - | ||
| 18 | 07 11 9 904 911 | CIRCLIP - 10-ZNS3 | - | |
| 19 | 35 21 1 230 360 | GASKET RING - 14X22X1.50 | - | |
| 20 | 07 11 9 906 328 | O-RING - 10X2 | - | |
35 21 1 457 605 | GASKET RING - 12X1Alternative for position 20 | - | ||
| 21 | 35 21 1 457 323 | REAR BRAKE CAM | - | |
| 22 | 34 21 3 060 107 | WASHER | - | |
| 23 | 34 21 1 457 602 | ABSORBER (to 03/87) | - | |
34 21 1 457 572 | ABSORBER (from 03/87)Alternative for position 23 | - | ||
| 24 | 35 21 1 244 520 | 35 21 1 244 520 | - | |
| 25 | 34 21 2 310 523 | SET: REPAIR KIT BRAKE SHOE ASBESTOS-FREE - 25MM 2 BACKEN | - |
