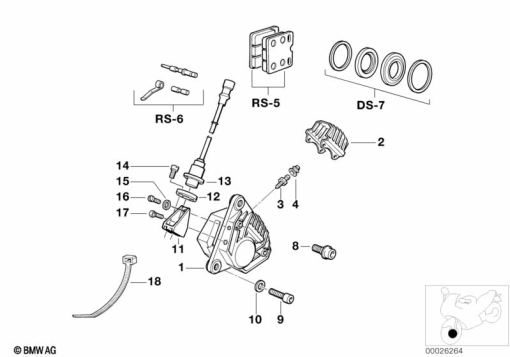

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 2 310 308 | CALIPER RIGHT - D=38MM (to 12/96) | - | |
34 11 2 310 309 | BRAKE CALIPER - D=38MMAlternative for position 1 | - | ||
| 2 | 34 11 1 454 120 | COVERING CAP - BREMBO | - | |
| 3 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | - | |
| 4 | 34 21 1 236 794 | DUST CAP | - | |
| 5 | 34 11 2 331 175 | SET: BRAKE PADS KIT | - | |
| 6 | 34 11 1 454 005 | SET: SET MOUNTING PARTS | - | |
| 7 | 34 11 2 310 493 | SET: REPAIR SET BRAKE CALIPER | - | |
| 8 | 34 51 1 457 496 | FIT BOLT | - | |
| 9 | 34 51 2 310 888 | FILLISTER-HEAD SCREW - M10X30 | - | |
| 11 | 34 51 1 458 399 | HOLDER | - | |
| 12 | 34 51 1 458 406 | SHIM - 0,100MM | - | |
34 51 1 458 407 | SHIM - 0,200MMAlternative for position 12 | - | ||
34 51 1 458 408 | SHIM - 0,300MMAlternative for position 12 | - | ||
34 51 1 458 409 | SHIM - 0,500MMAlternative for position 12 | - | ||
34 51 2 310 338 | SHIM - 0,400MMAlternative for position 12 | - | ||
34 51 2 310 339 | SHIM - 1,000MMAlternative for position 12 | - | ||
34 51 2 310 340 | SHIM - 0,050MMAlternative for position 12 | - | ||
34 51 2 325 976 | SHIM - 0,070MMAlternative for position 12 | - | ||
| 13 | 34 52 2 305 056 | PULSE GENERATOR | - | |
| 14 | 34 51 1 458 494 | FILLISTER-HEAD SCREW - M5X14 | - | |
| 15 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | - | |
| 16 | 34 51 1 458 493 | FILLISTER-HEAD SCREW - M6X16 "TORX" | - | |
| 17 | 07 14 9 165 719 | TORX-COUNTERSUNK HEAD SCREW - ISA M6X15 | - | |
| 18 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
