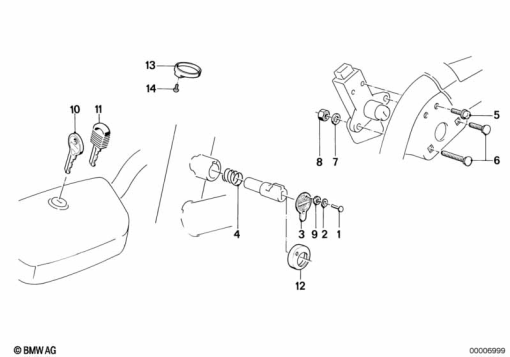

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 5 | 51 25 1 453 383 | SCREW | - | |
| 6 | 07 11 9 910 417 | SAUCER-HEAD SCREW - M5X16 | - | |
07 11 9 910 418 | SAUCER-HEAD SCREW - M5X30Alternative for position 6 | - | ||
| 7 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 7 | - | ||
| 8 | 07 11 9 905 710 | HEX NUT - M5 | - | |
| 10 | 51 25 1 233 898 | STANDARD KEY (CODE) | - | |
| 13 | 51 25 2 309 932 | RING | - | |
| 14 | 07 11 9 900 255 | FILLISTER-HEAD SCREW - M3X8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
