Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 2 309 415 | SET OF LOCKS | - | |
| 6 | 51 25 1 455 108 | LOCK (WITH KEY CODE) | - | |
| 7 | 51 25 1 455 109 | LOCK CYLINDER WITH KEY | - | |
| 8 | 51 25 1 453 655 | DUAL SEAT LOCK WITH CODE | - | |
| 10 | 51 25 1 453 822 | CATCH (CODE) | - | |
| 11 | 51 25 1 453 823 | LOCK | - | |
| 12 | 51 25 1 455 108 | LOCK (WITH KEY CODE) (to 08/93) | - | |
| 13 | 51 25 2 308 125 | HOUSING (to 08/93) | - | |
51 25 1 455 109 | LOCK CYLINDER WITH KEY (to 08/93)Alternative for position 13 | - | ||
| 14 | 51 25 2 308 125 | HOUSING (to 08/93) | - |

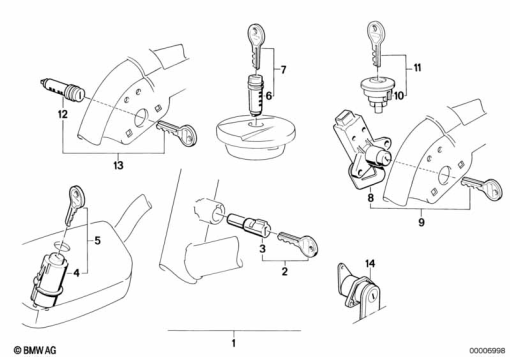

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
