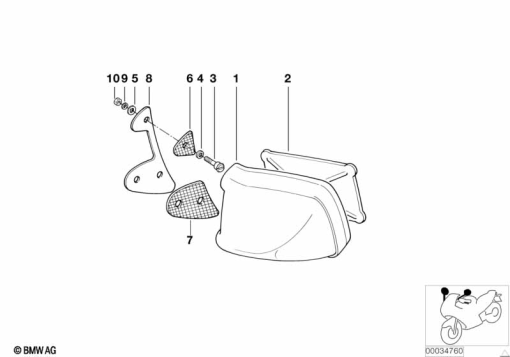

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 325 829 | MIRROR, KEY PRIMED - LEFT | - | |
46 63 2 325 830 | MIRROR, KEY PRIMED - RIGHTAlternative for position 1 | - | ||
| 2 | 46 63 1 455 000 | MIRROR GLASS PLUGGED-IN | - | |
| 3 | 46 63 1 453 887 | PIN - 28MM | - | |
46 63 1 453 888 | PIN - 40MMAlternative for position 3 | - | ||
| 4 | 46 63 1 453 961 | SHIM | - | |
46 63 8 525 338 | PLASTIC WASHER - M7Alternative for position 4 | - | ||
| 5 | 46 63 1 453 994 | RUBBER WASHER | - | |
| 6 | 46 63 1 455 001 | GASKET LEFT | - | |
46 63 1 455 002 | GASKET RIGHTAlternative for position 6 | - | ||
| 7 | 46 63 1 455 003 | GASKET LEFT | - | |
46 63 1 455 004 | GASKET RIGHTAlternative for position 7 | - | ||
| 8 | 46 63 2 303 359 | MOUNTING PLATE LEFT | - | |
46 63 2 303 360 | MOUNTING PLATE RIGHTAlternative for position 8 | - | ||
| 10 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
