K1100LT (89V2) | Vehicle Trim
PAINTED PARTS 707 MOREAGRÜN

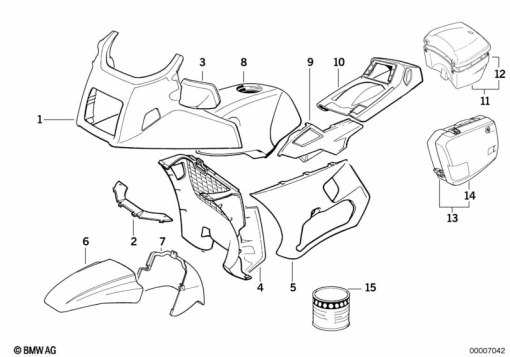

Diagram #51_0139 | 21 parts | 8 available in shop
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 324 442 | TRIM PANEL UPPER PART - MOREAGREEN | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 324 449 | MIRROR LEFT - MOREAGREEN | 1 | |
| 3 | 46 63 2 324 450 | MIRROR RIGHT - MOREAGREEN | 1 | |
| 4 | 46 63 2 324 534 | RADIOTOR TRIM PANEL CENTER - MOREAGREEN | 1 | |
| 5 | 46 63 2 324 537 | TRIM PANEL LOWER LEFT - MOREAGREEN | 1 | |
| 5 | 46 63 2 324 538 | TRIM PANEL LOWER RIGHT - MOREAGREEN | 1 | |
| 6 | 46 61 2 324 440 | FRONT MUDGUARD - MOREAGREEN | 1 | |
| 7 | 46 61 2 324 517 | FRONT MUD GUARD, REAR - MOREAGREEN | 1 | |
| 8 | 16 11 2 324 439 | FUEL TANK - MOREAGREEN | 1 | |
| 9 | 46 63 2 324 523 | COVERING LEFT - MOREAGREEN | 1 | |
| 9 | 46 63 2 324 524 | COVERING RIGHT - MOREAGREEN | 1 | |
| 10 | 52 53 2 324 545 | TAIL PART UPPER - MOREAGREEN | 1 | |
| 11 | 46 54 2 324 486 | TOP CASE - MOREAGREEN | 1 | |
| 12 | 46 54 2 324 489 | COVER - MOREAGREEN | 1 | |
| 13 | 46 54 2 324 665 | INTEGRAL CASE LEFT - MOREAGREEN | 1 | |
| 13 | 46 54 2 324 666 | INTEGRAL CASE RIGHT - MOREAGREEN | 1 | |
| 14 | 46 54 2 324 507 | COVER LEFT - MOREAGREEN | 1 | |
| 14 | 46 54 2 324 508 | COVER RIGHT - MOREAGREEN | 1 | |
| 15 | 51 91 0 302 187 | SET: TOUCH-UP STICK MOREAGRÜN MET. - 2X12ML 288 | 1 | |
| 15 | 51 91 1 052 259 | SET: METALLIC SPRAY MOREAGRÜN - 2X150ML 288 | 1 |
