K1100LT (89V2) | Vehicle Trim

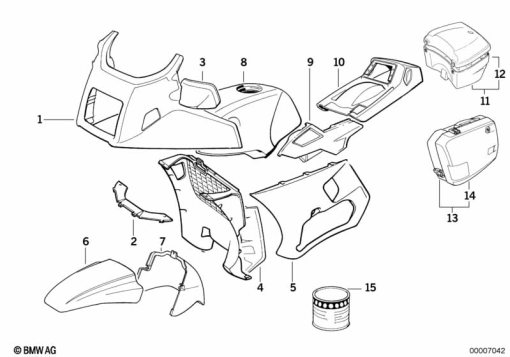

PAINTED PARTS 704 GRAPHIT
Diagram #51_0138 | 22 parts | 8 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 324 430 | TRIM PANEL UPPER PART - GRAPHIT | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 324 438 | MIRROR RIGHT - GRAPHIT | 1 | |
| 3 | 46 63 2 325 829 | MIRROR, KEY PRIMED - LEFT | 1 | |
| 4 | 46 63 2 324 533 | RADIOTOR TRIM PANEL CENTER - GRAPHIT | 1 | |
| 5 | 46 63 2 324 535 | TRIM PANEL LOWER LEFT - GRAPHIT | 1 | |
| 5 | 46 63 2 324 536 | TRIM PANEL LOWER RIGHT - GRAPHIT | 1 | |
| 6 | 46 61 2 324 396 | FRONT MUDGUARD - GRAPHIT | 1 | |
| 7 | 46 61 2 324 516 | FRONT MUD GUARD, REAR - GRAPHIT | 1 | |
| 8 | 16 11 2 324 429 | FUEL TANK - GRAPHIT | 1 | |
| 9 | 46 63 2 324 519 | COVERING LEFT - GRAPHIT | 1 | |
| 9 | 46 63 2 324 520 | COVERING RIGHT - GRAPHIT | 1 | |
| 10 | 52 53 2 324 544 | TAIL PART UPPER - GRAPHIT | 1 | |
| 11 | 46 54 2 324 485 | TOP CASE - GRAPHIT | 1 | |
| 12 | 46 54 2 324 488 | COVER - GRAPHIT | 1 | |
| 13 | 46 54 2 324 625 | INTEGRAL CASE LEFT - GRAPHIT | 1 | |
| 13 | 46 54 2 324 626 | INTEGRAL CASE RIGHT - GRAPHIT | 1 | |
| 14 | 46 54 2 324 503 | COVER LEFT - GRAPHIT | 1 | |
| 14 | 46 54 2 324 504 | COVER RIGHT - GRAPHIT | 1 | |
| 15 | 51 91 0 144 539 | SET: METALLIC TOUCH UP PENCIL GRAPHIT - 342 | 1 | |
| 15 | 51 91 0 145 931 | BASE PAINT, TWO-COAT GRAPHIT - 500ML 342 | 1 | |
| 15 | 51 91 2 324 462 | SET: METALLIC PAINT SPRAY GRAPHIT - 342 | 1 |
