K1100LT (89V2) | Vehicle Trim
PAINTED PARTS 708 NAVARRAVIOLETT

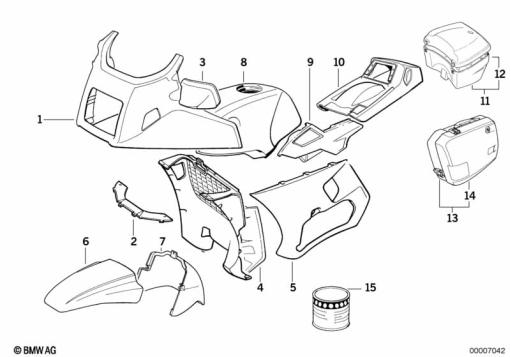

Diagram #51_0140 | 21 parts | 8 available in shop
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 324 531 | TRIM PANEL UPPER PART - NAVARRAVIOLETT | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 324 541 | MIRROR LEFT - NAVARRAVIOLETT | 1 | |
| 3 | 46 63 2 324 542 | MIRROR RIGHT - NAVARRAVIOLETT | 1 | |
| 4 | 46 63 2 324 543 | RADIOTOR TRIM PANEL CENTER - NAVARRAVIOLETT | 1 | |
| 5 | 46 63 2 324 539 | TRIM PANEL LOWER LEFT - NAVARRAVIOLETT | 1 | |
| 5 | 46 63 2 324 540 | TRIM PANEL LOWER RIGHT - NAVARRAVIOLETT | 1 | |
| 6 | 46 61 2 324 515 | FRONT MUDGUARD - NAVARRAVIOLETT | 1 | |
| 7 | 46 61 2 324 518 | FRONT MUD GUARD, REAR - NAVARRAVIOLETT | 1 | |
| 8 | 16 11 2 324 484 | FUEL TANK - NAVARRAVIOLETT | 1 | |
| 9 | 46 63 2 324 527 | COVERING LEFT - NAVARRAVIOLETT | 1 | |
| 9 | 46 63 2 324 528 | COVERING RIGHT - NAVARRAVIOLETT | 1 | |
| 10 | 52 53 2 324 546 | TAIL PART UPPER - NAVARRAVIOLETT | 1 | |
| 11 | 46 54 2 324 487 | TOP CASE - NAVARRAVIOLETT | 1 | |
| 12 | 46 54 2 324 490 | COVER - NAVARRAVIOLETT | 1 | |
| 13 | 46 54 2 324 757 | INTEGRAL CASE LEFT - NAVARRAVIOLETT | 1 | |
| 13 | 46 54 2 324 758 | INTEGRAL CASE RIGHT - NAVARRAVIOLETT | 1 | |
| 14 | 46 54 2 324 511 | COVER LEFT - NAVARRAVIOLETT | 1 | |
| 14 | 46 54 2 324 512 | COVER RIGHT - NAVARRAVIOLETT | 1 | |
| 15 | 51 91 0 302 190 | SET: TOUCH-UP STICK NAVARRAVIOLETT MET. - 2X12ML 346 | 1 | |
| 15 | 51 91 1 052 329 | SET: METALLIC SPRAY NAVARRAVIOLETT - 2X150ML 346 | 1 |
