K1100LT (89V2) | Vehicle Trim

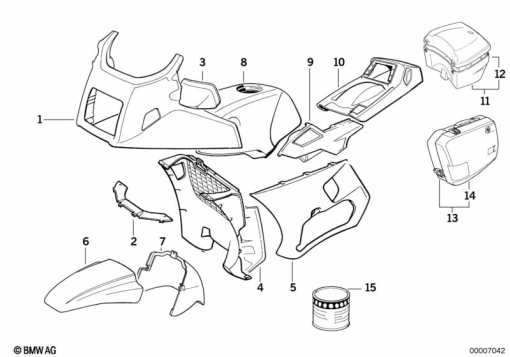

PAINTED PARTS 691 ASTRALBLAU
Diagram #51_0136 | 22 parts | 8 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 323 800 | UPPER CASING OF ANTENNA - ASTRALBLUE | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 323 791 | MIRROR LEFT - ASTRALBLUE | 1 | |
| 3 | 46 63 2 323 792 | MIRROR RIGHT - ASTRALBLUE | 1 | |
| 4 | 46 63 2 323 816 | RADIOTOR TRIM PANEL CENTER - ASTRALBLUE | 1 | |
| 5 | 46 63 2 323 821 | TRIM PANEL LOWER LEFT - ASTRALBLUE | 1 | |
| 5 | 46 63 2 323 822 | TRIM PANEL LOWER RIGHT - ASTRALBLUE | 1 | |
| 6 | 46 61 2 323 358 | FRONT MUDGUARD - ASTRALBLUE | 1 | |
| 7 | 46 61 2 323 812 | FRONT MUD GUARD, REAR - ASTRALBLUE | 1 | |
| 8 | 16 11 2 323 354 | FUEL TANK - ASTRALBLUE (from 01/93) | 1 | |
| 8 | 16 11 1 455 101 | FUEL TANK PRIME COATED (to 01/93) | 1 | |
| 9 | 46 63 2 323 827 | COVERING LEFT - ASTRALBLUE | 1 | |
| 9 | 46 63 2 323 828 | COVERING RIGHT - ASTRALBLUE | 1 | |
| 10 | 52 53 2 323 742 | TAIL PART UPPER - ASTRALBLUE | 1 | |
| 11 | 46 54 2 323 843 | TOP CASE - ASTRALBLUE | 1 | |
| 12 | 46 54 2 323 846 | COVER - ASTRALBLUE | 1 | |
| 13 | 46 54 2 324 133 | INTEGRAL CASE LEFT - ASTRALBLUE | 1 | |
| 13 | 46 54 2 324 134 | INTEGRAL CASE RIGHT - ASTRALBLUE | 1 | |
| 14 | 46 54 2 316 357 | COVER LEFT - BLACK | 1 | |
| 14 | 46 54 2 323 856 | COVER RIGHT - ASTRALBLUE | 1 | |
| 15 | 51 91 0 142 146 | SET: METALLIC TOUCH UP PENCIL ASTRALBLUE - 330 | 1 | |
| 15 | 51 91 2 323 638 | SET: METALLIC PAINT SPRAY ASTRALBLUE - 330 | 1 |
