K1100LT (89V2) | Vehicle Trim

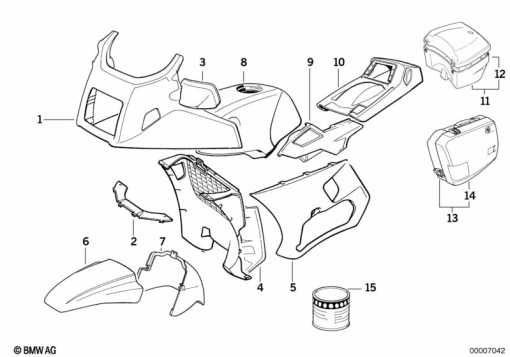

PAINTED PARTS 690 SEIDENBLAU
Diagram #51_0135 | 22 parts | 8 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 323 799 | UPPER CASING OF ANTENNA - SEIDENBLUE | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 323 483 | MIRROR LEFT - SEIDENBLUE | 1 | |
| 3 | 46 63 2 323 484 | MIRROR RIGHT - SEIDENBLUE | 1 | |
| 4 | 46 63 2 323 814 | RADIOTOR TRIM PANEL CENTER - SEIDENBLUE | 1 | |
| 5 | 46 63 2 323 819 | TRIM PANEL LOWER LEFT - SEIDENBLUE | 1 | |
| 5 | 46 63 2 323 820 | TRIM PANEL LOWER RIGHT - SEIDENBLUE | 1 | |
| 6 | 46 61 2 323 352 | FRONT MUDGUARD - SEIDENBLUE | 1 | |
| 7 | 46 61 2 323 811 | FRONT MUD GUARD, REAR - SEIDENBLUE | 1 | |
| 8 | 16 11 2 323 348 | FUEL TANK - SEIDENBLUE (from 01/93) | 1 | |
| 8 | 16 11 1 455 101 | FUEL TANK PRIME COATED (to 01/93) | 1 | |
| 9 | 46 63 2 323 825 | COVERING LEFT - SEIDENBLUE | 1 | |
| 9 | 46 63 2 323 826 | COVERING RIGHT - SEIDENBLUE | 1 | |
| 10 | 52 53 2 323 737 | TAIL PART UPPER - SEIDENBLUE | 1 | |
| 11 | 46 54 2 323 842 | TOP CASE - SEIDENBLUE | 1 | |
| 12 | 46 54 2 323 845 | COVER - SEIDENBLUE | 1 | |
| 13 | 46 54 2 324 137 | INTEGRAL CASE LEFT - SEIDENBLUE | 1 | |
| 13 | 46 54 2 324 138 | INTEGRAL CASE RIGHT - SEIDENBLUE | 1 | |
| 14 | 46 54 2 316 357 | COVER LEFT - BLACK | 1 | |
| 14 | 46 54 2 316 358 | COVER RIGHT - BLACK | 1 | |
| 15 | 51 91 0 144 562 | SET: METALLIC TOUCH UP PENCIL SEIDENBLUE - 338 | 1 | |
| 15 | 51 91 2 323 637 | SET: METALLIC SPRAY SEIDENBLUE - 338 | 1 |
