K1100LT (89V2) | Vehicle Trim
PAINTED PARTS 689 MYSTIKROT

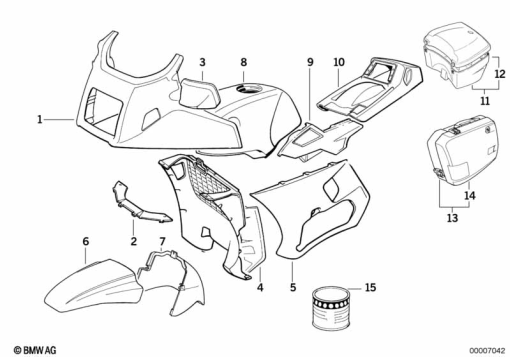

Diagram #51_0134 | 23 parts | 8 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 323 798 | UPPER CASING OF ANTENNA - MYSTIKROT | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 323 473 | MIRROR LEFT - MYSTIKROT | 1 | |
| 3 | 46 63 2 323 474 | MIRROR RIGHT - MYSTIKROT | 1 | |
| 4 | 46 63 2 323 813 | RADIOTOR TRIM PANEL CENTER - MYSTIKROT | 1 | |
| 5 | 46 63 2 323 817 | TRIM PANEL LOWER LEFT - MYSTIKROT | 1 | |
| 5 | 46 63 2 323 818 | TRIM PANEL LOWER RIGHT - MYSTIKROT | 1 | |
| 6 | 46 61 2 323 346 | FRONT MUDGUARD - MYSTIKROT | 1 | |
| 7 | 46 61 2 323 810 | FRONT MUD GUARD, REAR - MYSTIKROT | 1 | |
| 8 | 16 11 2 323 344 | FUEL TANK - MYSTIKROT (from 01/93) | 1 | |
| 8 | 16 11 1 455 101 | FUEL TANK PRIME COATED (to 01/93) | 1 | |
| 9 | 46 63 2 323 823 | COVERING LEFT - MYSTIKROT | 1 | |
| 9 | 46 63 2 323 824 | COVERING RIGHT - MYSTIKROT | 1 | |
| 10 | 52 53 2 323 732 | TAIL PART UPPER - MYSTIKROT | 1 | |
| 11 | 46 54 2 323 841 | TOP CASE - MYSTIKROT | 1 | |
| 12 | 46 54 2 323 844 | COVER - MYSTIKROT | 1 | |
| 13 | 46 54 2 324 135 | INTEGRAL CASE LEFT - MYSTIKROT | 1 | |
| 13 | 46 54 2 324 136 | INTEGRAL CASE RIGHT - MYSTIKROT | 1 | |
| 14 | 46 54 2 323 851 | COVER LEFT - MYSTIKROT | 1 | |
| 14 | 46 54 2 323 852 | COVER RIGHT - MYSTIKROT | 1 | |
| 15 | 51 91 0 144 548 | SET: METALLIC TOUCH UP PENCIL MYSTIKROT - 323 | 1 | |
| 15 | 51 91 0 145 936 | BASE PAINT, TWO-COAT MYSTIKROT - 500ML 323 | 1 | |
| 15 | 51 91 2 323 636 | SET: METALLIC SPRAY MYSTIKROT - 323 | 1 |
