K1100LT (89V2) | Vehicle Trim
PAINTED PARTS 683 PINIENGRÜN

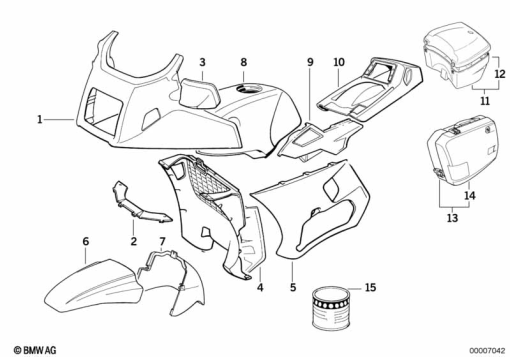

Diagram #51_0133 | 22 parts | 8 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 323 300 | UPPER CASING OF ANTENNA - PINIENGREEN | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 323 307 | MIRROR LEFT - PINIENGREEN | 1 | |
| 3 | 46 63 2 323 308 | MIRROR RIGHT - PINIENGREEN | 1 | |
| 4 | 46 63 2 323 301 | RADIOTOR TRIM PANEL CENTER - PINIENGREEN | 1 | |
| 5 | 46 63 2 323 297 | TRIM PANEL LOWER LEFT - PINIENGREEN | 1 | |
| 5 | 46 63 2 323 298 | TRIM PANEL LOWER RIGHT - PINIENGREEN | 1 | |
| 6 | 46 61 2 323 295 | FRONT MUDGUARD - PINIENGREEN | 1 | |
| 7 | 46 61 2 323 296 | FRONT MUD GUARD, REAR - PINIENGREEN | 1 | |
| 8 | 16 11 2 322 128 | FUEL TANK - PINIENGREEN (from 01/93) | 1 | |
| 8 | 16 11 2 323 302 | FUEL TANK - PINIENGREEN (to 01/93) | 1 | |
| 9 | 46 63 2 323 303 | COVERING LEFT - PINIENGREEN | 1 | |
| 9 | 46 63 2 323 304 | COVERING RIGHT - PINIENGREEN | 1 | |
| 10 | 46 63 2 323 309 | TAIL PART UPPER - PINIENGREEN | 1 | |
| 11 | 46 54 2 323 310 | TOP CASE - PINIENGREEN | 1 | |
| 12 | 46 54 2 323 311 | COVER - PINIENGREEN | 1 | |
| 13 | 46 54 2 323 313 | INTEGRAL CASE LEFT - PINIENGREEN | 1 | |
| 13 | 46 54 2 323 314 | INTEGRAL CASE RIGHT - PINIENGREEN | 1 | |
| 14 | 46 54 2 323 651 | COVER LEFT - PINIENGREEN | 1 | |
| 14 | 46 54 2 323 652 | COVER RIGHT - PINIENGREEN | 1 | |
| 15 | 51 91 0 144 558 | SET: METALLIC TOUCH UP PENCIL PINIENGRÜN - 277 | 1 | |
| 15 | 51 91 2 323 031 | SET: METALLIC SPRAY PINIENGRÜN - 277 | 1 |
