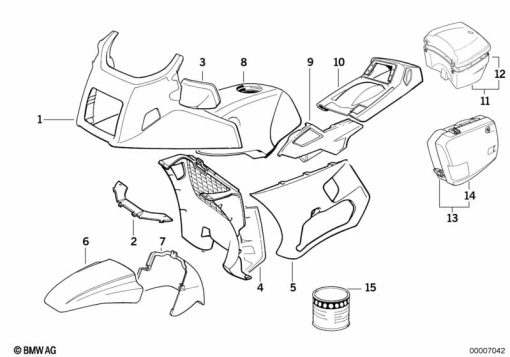

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 456 661 | UPPER CASING OF ANTENNA - RED | - | |
| 2 | 46 63 2 309 265 | COVER - BLACK | - | |
| 3 | 46 63 1 455 149 | MIRROR LEFT - RED | - | |
46 63 1 455 150 | MIRROR RIGHT - REDAlternative for position 3 | - | ||
| 4 | 46 63 2 323 279 | RADIOTOR TRIM PANEL CENTER - RED | - | |
| 5 | 46 63 2 323 277 | TRIM PANEL LOWER LEFT - RED | - | |
46 63 2 323 278 | TRIM PANEL LOWER RIGHT - REDAlternative for position 5 | - | ||
| 6 | 46 61 1 456 903 | FRONT MUDGUARD - RED | - | |
| 7 | 46 61 2 323 276 | FRONT MUD GUARD, REAR - RED | - | |
| 8 | 16 11 1 455 210 | FUEL TANK - RED | - | |
| 9 | 46 63 2 323 281 | COVERING LEFT - RED | - | |
46 63 2 323 282 | COVERING RIGHT - REDAlternative for position 9 | - | ||
| 10 | 52 53 2 323 285 | TAIL PART UPPER - RED | - | |
| 11 | 46 54 2 323 280 | TOP CASE - RED | - | |
| 12 | 46 54 2 323 286 | COVER - RED | - | |
| 13 | 46 54 2 323 289 | INTEGRAL CASE LEFT - RED | - | |
46 54 2 323 290 | INTEGRAL CASE RIGHT - REDAlternative for position 13 | - | ||
| 14 | 46 54 2 323 647 | COVER LEFT - RED | - | |
46 54 2 323 648 | COVER RIGHT - REDAlternative for position 14 | - | ||
| 15 | 51 91 0 140 597 | BASE PAINT, TWO-COAT RED - 500ML 031 | - | |
51 91 0 144 559 | SET: METALLIC TOUCH UP PENCIL RED - 031/531Alternative for position 15 | - | ||
51 91 1 240 303 | SET: METALLIC SPRAY RED - 031/060Alternative for position 15 | - |
