K1100LT (89V2) | Vehicle Trim

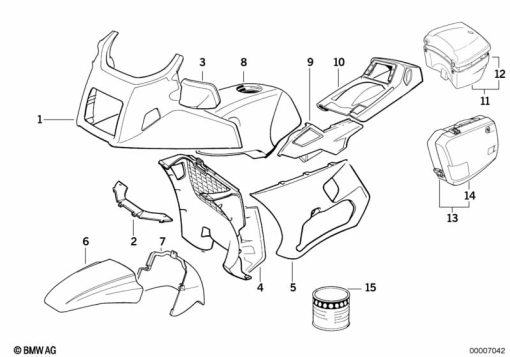

PAINTED PARTS 681 KOENIGSBLAU
Diagram #51_0131 | 22 parts | 7 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 323 258 | UPPER CASING OF ANTENNA - KOENIGSBLUE | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 323 191 | MIRROR LEFT - KOENIGSBLUE | 1 | |
| 3 | 46 63 2 323 192 | MIRROR RIGHT - KOENIGSBLUE | 1 | |
| 4 | 46 63 2 323 254 | RADIOTOR TRIM PANEL CENTER - KOENIGSBLUE | 1 | |
| 5 | 46 63 2 323 255 | TRIM PANEL LOWER LEFT - KOENIGSBLUE | 1 | |
| 5 | 46 63 2 323 256 | TRIM PANEL LOWER RIGHT - KOENIGSBLUE | 1 | |
| 6 | 46 61 2 323 151 | FRONT MUDGUARD - KOENIGSBLUE | 1 | |
| 7 | 46 61 2 323 253 | FRONT MUD GUARD, REAR - KOENIGSBLUE | 1 | |
| 8 | 16 11 2 323 050 | FUEL TANK - KOENIGSBLUE | 1 | |
| 9 | 46 63 2 323 259 | COVERING LEFT - KOENIGSBLUE | 1 | |
| 9 | 46 63 2 323 260 | COVERING RIGHT - KOENIGSBLUE | 1 | |
| 10 | 52 53 2 323 265 | TAIL PART UPPER - KOENIGSBLUE | 1 | |
| 11 | 46 54 2 323 266 | TOP CASE - KOENIGSBLUE | 1 | |
| 12 | 46 54 2 323 267 | COVER - KOENIGSBLUE | 1 | |
| 13 | 46 54 2 323 269 | INTEGRAL CASE LEFT - KOENIGSBLUE | 1 | |
| 13 | 46 54 2 323 270 | INTEGRAL CASE RIGHT - KOENIGSBLUE | 1 | |
| 14 | 46 54 2 323 645 | COVER LEFT - KOENIGSBLUE | 1 | |
| 14 | 46 54 2 323 646 | COVER RIGHT - KOENIGSBLUE | 1 | |
| 15 | 51 91 0 144 544 | SET: METALLIC TOUCH UP PENCIL KOENIGSBLUE - 270 | 1 | |
| 15 | 51 91 0 145 934 | BASE PAINT, TWO-COAT KÖNIGSBLUE - 500ML 270 | 1 | |
| 15 | 51 91 2 323 030 | SET: METALLIC SPRAY KOENIGSBLUE - 270 | 1 |
