K1100LT (89V2) | Vehicle Trim

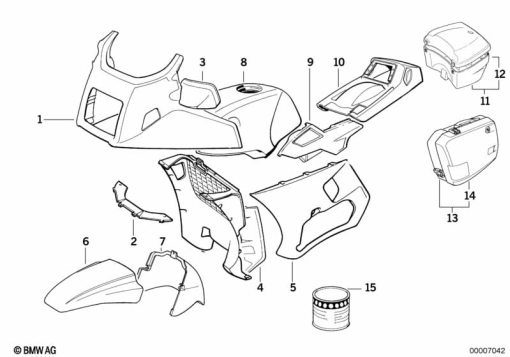

PAINTED PARTS 679 CLASSICSCHWARZ
Diagram #51_0130 | 22 parts | 8 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 323 234 | UPPER CASING OF ANTENNA - CLASSICBLACK | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 322 558 | MIRROR RIGHT - CLASSICBLACK | 1 | |
| 3 | 46 63 2 325 829 | MIRROR, KEY PRIMED - LEFT | 1 | |
| 4 | 46 63 2 323 237 | RADIOTOR TRIM PANEL CENTER - CLASSICBLACK | 1 | |
| 5 | 46 63 2 323 235 | TRIM PANEL LOWER LEFT - CLASSICBLACK | 1 | |
| 5 | 46 63 2 323 236 | TRIM PANEL LOWER RIGHT - CLASSICBLACK | 1 | |
| 6 | 46 61 2 322 512 | FRONT MUDGUARD - CLASSICBLACK | 1 | |
| 7 | 46 61 2 323 233 | FRONT MUD GUARD, REAR - CLASSICBLACK | 1 | |
| 8 | 16 11 2 323 333 | FUEL TANK - CLASSICBLACK (from 01/93) | 1 | |
| 8 | 16 11 2 322 506 | FUEL TANK - CLASSICBLACK (to 01/93) | 1 | |
| 9 | 46 63 2 323 239 | COVERING LEFT - CLASSICBLACK | 1 | |
| 9 | 46 63 2 323 240 | COVERING RIGHT - CLASSICBLACK | 1 | |
| 10 | 52 53 2 323 238 | TAIL PART UPPER - CLASSICBLACK | 1 | |
| 11 | 46 54 2 323 230 | TOP CASE - CLASSICBLACK | 1 | |
| 12 | 46 54 2 323 231 | COVER - CLASSICBLACK | 1 | |
| 13 | 46 54 2 323 245 | INTEGRAL CASE LEFT - CLASSICBLACK | 1 | |
| 13 | 46 54 2 323 246 | INTEGRAL CASE RIGHT - CLASSICBLACK | 1 | |
| 14 | 46 54 2 323 641 | COVER LEFT - CLASSICBLACK | 1 | |
| 14 | 46 54 2 323 642 | COVER RIGHT - CLASSICBLACK | 1 | |
| 15 | 51 91 0 144 525 | SET: METALLIC TOUCH UP PENCIL CLASSICBLACK - 162 | 1 | |
| 15 | 51 91 2 301 325 | SET: METALLIC SPRAY CLASSIC BLACK - 162 | 1 |
