K1100LT (89V2) | Vehicle Trim

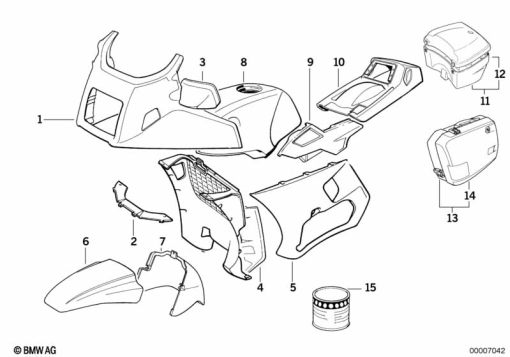

PAINTED PARTS 712 ASPENSILBER
Diagram #51_0129 | 23 parts | 8 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 325 019 | TRIM PANEL UPPER PART - ASPENS.MU/MU | 1 | |
| 1 | 46 63 2 325 020 | UPPER CASING OF ANTENNA - ASPENS.MU/MU | 1 | |
| 2 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 3 | 46 63 2 325 029 | MIRROR LEFT - ASPENSILVER | 1 | |
| 3 | 46 63 2 325 030 | MIRROR RIGHT - ASPENSILVER | 1 | |
| 4 | 46 63 2 325 022 | RADIOTOR TRIM PANEL CENTER - ASPENS.MU/MU | 1 | |
| 5 | 46 63 2 325 027 | TRIM PANEL LOWER LEFT - ASPENS.MU/MU | 1 | |
| 5 | 46 63 2 325 028 | TRIM PANEL LOWER RIGHT - ASPENS.MU/MU | 1 | |
| 6 | 46 61 2 325 015 | FRONT MUDGUARD - ASPENSILVER | 1 | |
| 7 | 46 61 2 325 016 | FRONT MUD GUARD, REAR - ASPENSILVER | 1 | |
| 8 | 16 11 2 325 000 | FUEL TANK - ASPENS.MU/MU | 1 | |
| 9 | 46 63 2 325 023 | COVERING LEFT - ASPENSILVER | 1 | |
| 9 | 46 63 2 325 024 | COVERING RIGHT - ASPENSILVER | 1 | |
| 10 | 52 53 2 325 034 | TAIL PART UPPER - ASPENSILVER | 1 | |
| 11 | 46 54 2 325 010 | TOP CASE - ASPENSILVER | 1 | |
| 12 | 46 54 2 325 041 | COVER - ASPENS.MU/MU | 1 | |
| 13 | 46 54 2 325 013 | INTEGRAL CASE LEFT - ASPENS.MU/MU | 1 | |
| 13 | 46 54 2 325 014 | INTEGRAL CASE RIGHT - ASPENS.MU/MU | 1 | |
| 14 | 46 54 2 325 043 | COVER LEFT - ASPENSILVER | 1 | |
| 14 | 46 54 2 325 044 | COVER RIGHT - ASPENSILVER | 1 | |
| 15 | 51 91 0 302 036 | SET: TOUCH-UP STICK IN ASPENSILVER MET. - 2X12ML 339 | 1 | |
| 15 | 51 91 1 052 333 | SET: SPRAY-PAINT ASPENSILVER MET. - 2X150ML 339 | 1 | |
| 15 | 51 91 2 325 096 | RULING INK MUSCAT - 250ML 377 | 1 |
