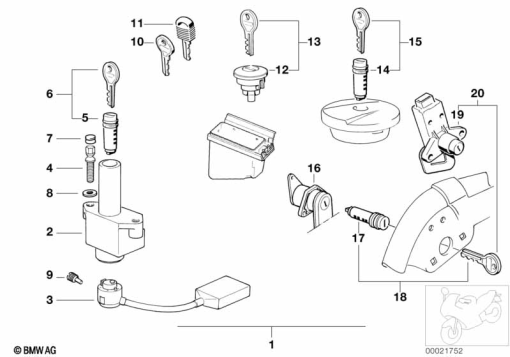

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 2 309 415 | SET OF LOCKS | - | |
| 2 | 51 25 2 323 004 | HOUSING | - | |
| 3 | 61 32 2 305 292 | IGNITION/LIGHT SWITCH | - | |
| 4 | 51 25 7 711 811 | LOCK SCREW - M8X31-MK-ZNS3 | - | |
| 5 | 51 25 2 308 669 | STEERING LOCK (WITH KEY CODE) | - | |
| 6 | 51 25 2 308 668 | LOCK CYLINDER WITH KEY | - | |
| 7 | 31 42 1 457 133 | 31 42 1 457 133 | 2 | |
| 8 | 07 11 9 904 826 | Washer | - | |
07 11 9 931 697 | WASHER - 8,4Alternative for position 8 | - | ||
| 9 | 51 25 9 062 821 | STUD BOLT - M3X5 | - | |
| 10 | 51 25 1 233 898 | STANDARD KEY (CODE) | - | |
| 12 | 51 25 1 453 822 | CATCH (CODE) | - | |
| 13 | 51 25 1 453 823 | LOCK | - | |
| 14 | 51 25 1 455 108 | LOCK (WITH KEY CODE) | - | |
| 15 | 51 25 1 455 109 | LOCK CYLINDER WITH KEY | - | |
| 16 | 51 25 2 308 125 | HOUSING (to 08/93) | - | |
| 17 | 51 25 1 455 108 | LOCK (WITH KEY CODE) (to 08/93) | - | |
| - | 51 25 2 308 125 | HOUSING (to 08/93) | - | |
| 18 | 51 25 1 455 109 | LOCK CYLINDER WITH KEY (to 08/93) | - | |
| - | 51 25 2 308 125 | HOUSING (to 08/93) | - | |
| 19 | 51 25 1 453 655 | DUAL SEAT LOCK WITH CODE | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
