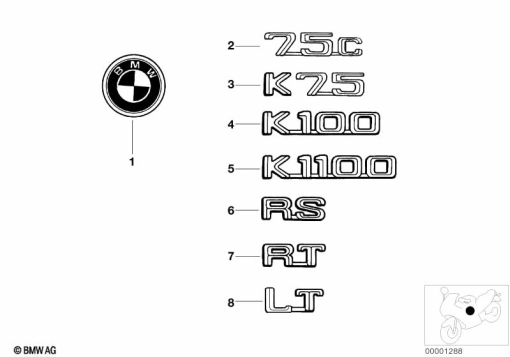

Parts List (3)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 7 686 464 | BADGE - D=60MM | - | |
| 5 | 51 14 2 323 017 | BADGE - K1100 CR | - | |
| 8 | 51 14 2 308 739 | BADGE - LT CR | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
