K1100LT (89V2) | Seat

TAIL PART LOWER

Diagram #52_1027 | 4 parts

100%

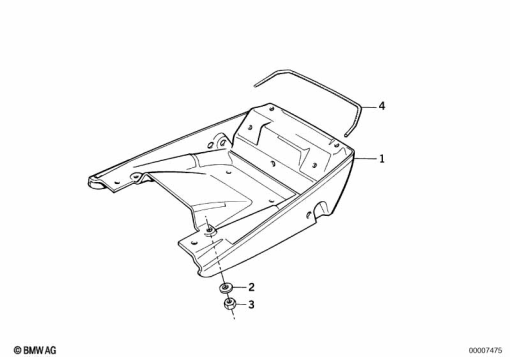

K1100LT (89V2) TAIL PART LOWER exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
52 53 1 453 608
TAIL PART LOWER - BLACK-MATT-
2
07 11 9 904 202
WASHER - A6,4-ZNNIV SI-
3
07 14 7 575 163
SELF-LOCKING HEX NUT - M6 ZNNIV SI-
4
65 61 2 300 295
GASKET - 215 MM-
