K1100LT (89V2) | Seat

SLIDING DUAL SEAT

Diagram #52_1020 | 29 parts

100%

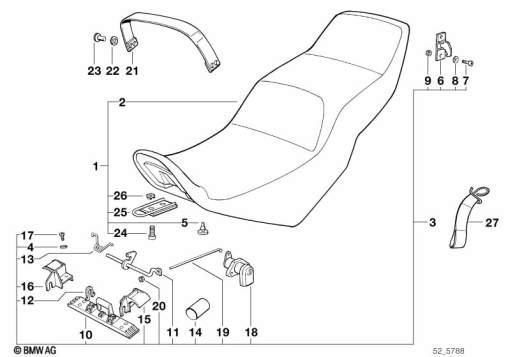

K1100LT (89V2) SLIDING DUAL SEAT exploded view parts diagram

Parts List (29)

#Part NumberDescriptionQty
1
52 53 2 324 464
LOW SLIDING DUAL SEAT - 760MM BLACK (to 08/93)-
2
52 53 2 324 465
SEAT COVER VINYL BLACK (to 08/93)-
4
07 11 9 904 446
WASHER - 5-200 HV-ZNNIV (to 08/93)-
5
52 53 1 230 319
RUBBER SUPPORT - D=18MM (to 08/93)-
52 53 1 236 128
BUMP STOP - H=10 (to 08/93)Alternative for position 5-
6
52 53 2 308 127
LOCKING HOOK (to 08/93)-
7
07 11 9 907 627
FILLISTER HEAD SCREW - M5X12-ZN (to 08/93)-
8
07 11 9 904 446
WASHER - 5-200 HV-ZNNIV (to 08/93)-
9
07 11 9 905 729
HEX NUT - M5-8-ZNNIV SI (to 08/93)-
07 11 9 905 729
HEX NUTAlternative for position 9-
07 11 9 922 035
HEX NUTAlternative for position 9-
07 11 9 922 036
HEX NUTAlternative for position 9-
10
51 25 2 308 117
LOCK (to 08/93)-
11
51 25 2 308 118
CATCH (to 08/93)-
12
51 25 2 308 112
SPRING (to 08/93)-
13
51 25 2 308 121
RETAINER SPRING (to 08/93)-
14
51 25 2 308 126
PROTECTIVE HOSE (to 08/93)-
15
51 25 2 308 123
CLAMPING LEFT (to 08/93)-
16
51 25 2 308 124
CLAMPING RIGHT (to 08/93)-
18
51 25 2 308 125
HOUSING (to 08/93)-
19
51 25 2 308 122
SPOKE (to 08/93)-
20
07 12 9 906 098
HEX NUT - M4-A2-70 (to 08/93)-
21
52 53 1 455 328
STRAP - BLACK (to 08/93)-
22
07 11 9 904 606
WASHER - 6-200 HV-ZNS3 (to 08/93)-
23
52 53 2 307 098
RIVET (to 08/93)-
24
07 11 9 902 316
FILLISTER HEAD WITH WASHER - M6X16-Z1-8.8 (to 08/93)-
25
52 53 2 308 366
CATCH BRACKET (to 08/93)-
26
07 12 9 926 512
CAGE NUT - M6 (to 08/93)-
27
51 25 2 309 417
HOLDER (to 08/93)-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
