Parts List (9)

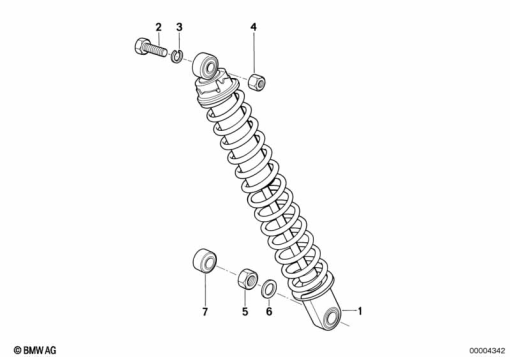

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 312 257 | STRUT, BLACK, REAR | - | |
33 53 2 332 587 | STRUT, REAR, SILVERAlternative for position 1 | - | ||
| 2 | 33 53 2 310 492 | FILLISTER HEAD SCREW | - | |
| 3 | 07 11 9 901 766 | WASHER - A13/HV-ZNS (to 04/99) | - | |
07 11 9 904 119 | WASHER - 12-300 HV-ZNS3Alternative for position 3 | - | ||
| 4 | 07 12 9 906 866 | HEX NUT - M12-8-ZNS3 | - | |
| 6 | 07 11 9 901 766 | WASHER - A13/HV-ZNS (to 04/99) | - | |
07 11 9 904 119 | WASHER - 12-300 HV-ZNS3Alternative for position 6 | - | ||
| 7 | 33 53 2 312 873 | RUBBER MOUNTING | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
