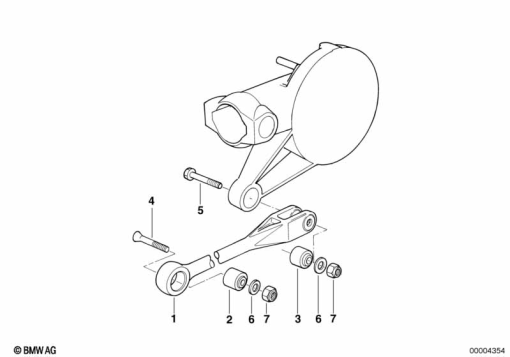

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 17 2 310 160 | ROD, BLANK (to 07/93) | - | |
33 17 2 322 271 | BLACK ROD (to 07/93)Alternative for position 1 | - | ||
| 2 | 33 17 1 458 495 | RUBBER MOUNTING (to 07/93) | - | |
| 3 | 33 17 1 458 495 | RUBBER MOUNTING | - | |
| 4 | 07 11 9 900 827 | COUNTERSUNK HEAD SCREW - M10X70 | - | |
| 5 | 07 11 9 903 068 | HEX BOLT - M10X70-8.8 ZNS3 (to 07/93) | - | |
| 6 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 7 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | - |
