K1100LT (89V2) | Rear Axle & Suspension

REAR WHEEL SWINGING ARM

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #33_0660 | 23 parts

100%

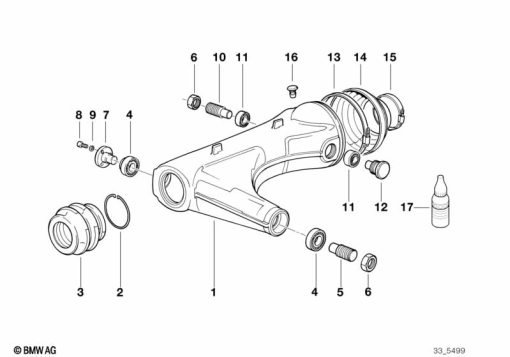

K1100LT (89V2) REAR WHEEL SWINGING ARM exploded view parts diagram

Parts List (23)

#	Part Number	Description	Qty
1	33 17 2 322 269	REAR WHEEL SWINGING ARM, BLACK	-
	33 17 2 323 125	REAR WHEEL SWINGING ARM, SILVERAlternative for position 1	-
2	33 17 1 450 836	SNAP RING	-
3	33 17 1 454 552	RUBBER BOOT	-
4	33 17 1 241 546	TAPERED ROLLER BEARING - 40X17X17	-
5	33 17 1 450 494	PIVOT PIN	-
6	33 53 3 054 174	HEX NUT	-
7	33 17 2 311 068	PIVOT PIN	-
8	07 12 9 905 536	ISA SCREW - M6X16-8.8-ZNNIV	-
9	07 11 9 932 0701	SS 6MM WASHER	-
	07 11 9 932 073	SPRING WASHER BLACK - B6-ZN (to 08/90)Alternative for position 9	-
	07 11 9 932 073	BLACK SPRING WASHERAlternative for position 9	-
	07 11 9 904 446	WASHER - 5-200 HV-ZNNIVAlternative for position 9	-
10	33 17 2 310 904	PIVOT PIN, RIGHT	-
-	33 17 2 331 095	ADHESIVE LOCTITE 2701 - 10ML	-
11	33 17 2 311 091	NEEDLE BEARING - 10X32X17	-
-	33 17 2 331 095	ADHESIVE LOCTITE 2701 - 10ML	-
12	33 17 2 310 890	PIVOT PIN	-
-	33 17 2 331 095	ADHESIVE LOCTITE 2701 - 10ML	-
13	33 17 2 335 120	TENSION STRAP - D=132MM	-
14	33 17 1 452 504	RUBBER BOOT	-
15	33 17 1 458 197	TENSION STRAP - D=85MM	-
17	33 17 2 331 095	ADHESIVE LOCTITE 2701 - 10ML	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
