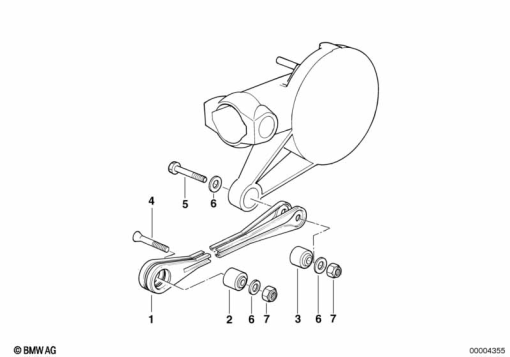

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 17 2 312 876 | BLACK ROD (from 08/93) | - | |
33 17 2 323 127 | SILVER ROD (from 08/93)Alternative for position 1 | - | ||
| 3 | 33 17 1 458 495 | RUBBER MOUNTING | - | |
| 4 | 07 11 9 900 827 | COUNTERSUNK HEAD SCREW - M10X70 | - | |
| 5 | 07 11 9 905 161 | HEX BOLT - M10X55-10.9ZNS3 (from 08/93) | - | |
| 6 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 7 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
