K1100LT (89V2) | Rear Axle & Suspension

DRIVE SHAFT

Diagram #33_1658 | 3 parts

100%

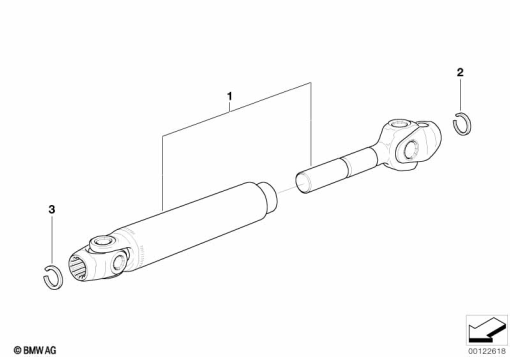

K1100LT (89V2) DRIVE SHAFT exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
26 11 2 325 746
DRIVE SHAFT1
2
26 11 2 310 656
SNAP RING - 19,7X2,5/10MM1
3
26 11 1 451 977
SNAP RING - 19,7X2/5MM1
