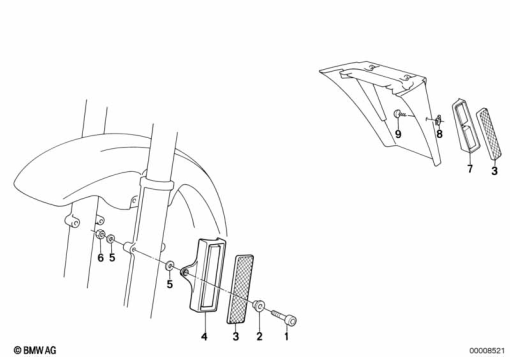

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 2 322 495 | FILLISTER-HEAD SCREW - M6X45-8.8 ZNS | - | |
| 2 | 63 14 2 305 029 | BUSH | - | |
| 3 | 63 14 1 459 035 | REFLECTOR, YELLOW | - | |
| - | 63 14 1 459 168 | HOLDER | - | |
| 3 | 63 14 1 459 994 | REFLECTOR, YELLOW | - | |
63 14 1 459 995 | REFLECTOR, REDAlternative for position 3 | - | ||
| 4 | 63 14 1 459 168 | HOLDER | - | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 6 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 7 | 63 14 2 305 037 | BRACKET LEFT | - | |
63 14 2 305 038 | BRACKET RIGHTAlternative for position 7 | - |
