Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 3 | 63 21 7 160 789 | BULB - P21W/12V/21W | - | |
| 8 | 63 23 1 459 095 | LEFT TURN INDICATOR | - | |
63 23 1 459 096 | RIGHT TURN INDICATORAlternative for position 8 | - | ||
| 9 | 63 13 2 306 630 | BULB SOCKET | - | |
| 10 | 63 23 1 459 149 | GASKET LEFT | - | |
63 23 1 459 474 | GASKET RIGHTAlternative for position 10 | - | ||
| 11 | 07 11 9 915 104 | HEX BOLT WITH WASHER - M5X12-SB-Z1 | - |

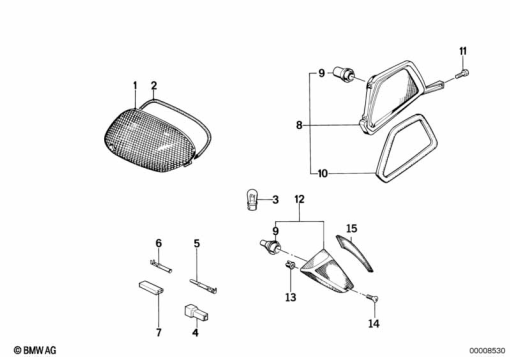

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
