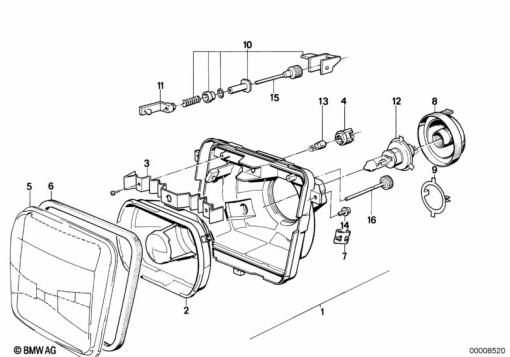

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 2 305 350 | HEADLIGHT | - | |
| 2 | 63 12 2 305 559 | REFLECTOR | - | |
| 3 | 63 12 1 459 112 | REFLECTOR | - | |
| 4 | 63 12 1 459 131 | BULB SOCKET | - | |
| 5 | 63 12 1 459 027 | LAMP LENS | - | |
| 6 | 63 12 1 459 110 | GASKET | - | |
| 7 | 63 12 1 459 113 | CLIP | - | |
63 12 8 361 004 | HEADLIGHT CLIPAlternative for position 7 | - | ||
| 8 | 63 12 1 459 100 | COVER | - | |
| 9 | 63 12 1 459 470 | CLIP | - | |
| 10 | 63 12 1 459 138 | LEVER | - | |
| 11 | 63 12 1 459 139 | MOUNTING PARTS SET | - | |
| 12 | 63 12 1 354 619 | BULB - H4 | - | |
| 13 | 07 11 9 978 256 | BULB | - | |
07 11 9 978 2561 | PARKING BULBAlternative for position 13 | - | ||
07 50 9 063 576 | BULB - 12V 4WAlternative for position 13 | - | ||
| 14 | 07 11 9 907 595 | FILLISTER HEAD SCREW - M5X12-Z3-1 | - | |
07 11 9 907 582 | FILLISTER HEAD SCREW - M5X12-Z1Alternative for position 14 | - | ||
| 16 | 63 12 1 459 779 | ADJUSTING SCREW | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
