K1100LT (89V2) | Frame, Fairing, Cases
WHEEL COVER, REAR

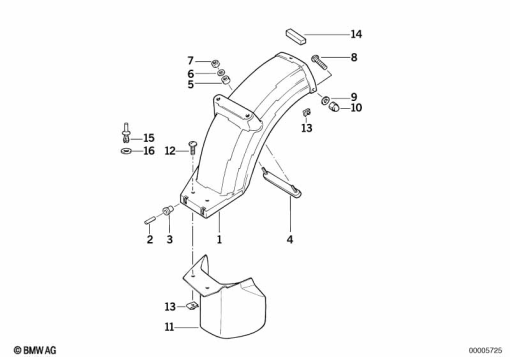

Diagram #46_0227 | 18 parts | 2 available in shop
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 308 353 | REAR WHEEL COVER | 1 | |
| 2 | 07 11 9 941 381 | ROLL PIN - 6X28 | 1 | |
| 3 | 46 62 1 450 473 | BUSHING | 1 | |
| 4 | 46 62 2 309 183 | SHACKLE (to 07/93) | 1 | |
| 4 | 46 62 1 453 328 | SHACKLE (from 07/93) | 1 | |
| 5 | 46 62 2 309 135 | SPACER TUBE (to 07/93) | 1 | |
| 6 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 6 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 7 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 7 | 07 14 7 153 450 | SELF-LOCKING HEX NUT - M6 (from 07/93) | 1 | |
| 8 | 07 11 9 907 627 | FILLISTER HEAD SCREW - M5X12-ZN | 1 | |
| 9 | 11 41 1 267 200 | WASHER | 1 | |
| 10 | 07 11 9 900 327 | CAP NUT - M5 | 1 | |
| 11 | 46 62 2 307 459 | MUDGUARD | 1 | |
| 12 | 46 63 2 308 633 | OVAL-HEAD SCREW WITH WASHER - M5X12-ZNS SW | 1 | |
| 13 | 61 13 1 372 033 | BODY NUT - M5 | 1 | |
| 15 | 51 16 1 881 149 | EXPANDING RIVET | 1 | |
| 16 | 46 63 1 240 819 | WASHER | 1 |
