K1100LT (89V2) | Frame, Fairing, Cases

INTEGRAL CASE

Diagram #46_0220 | 49 parts

100%

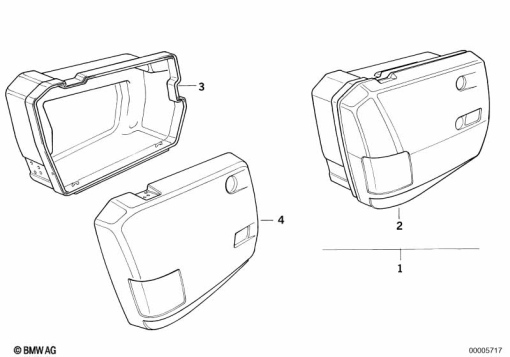

K1100LT (89V2) INTEGRAL CASE exploded view parts diagram

Parts List (49)

#Part NumberDescriptionQty
2
46 54 2 316 181
INTEGRAL CASE LEFT - 35L-
46 54 2 316 182
INTEGRAL CASE RIGHT - 35LAlternative for position 2-
46 54 2 323 245
INTEGRAL CASE LEFT - CLASSICBLACKAlternative for position 2-
46 54 2 323 246
INTEGRAL CASE RIGHT - CLASSICBLACKAlternative for position 2-
46 54 2 323 269
INTEGRAL CASE LEFT - KOENIGSBLUEAlternative for position 2-
46 54 2 323 270
INTEGRAL CASE RIGHT - KOENIGSBLUEAlternative for position 2-
46 54 2 323 289
INTEGRAL CASE LEFT - REDAlternative for position 2-
46 54 2 323 290
INTEGRAL CASE RIGHT - REDAlternative for position 2-
46 54 2 323 313
INTEGRAL CASE LEFT - PINIENGREENAlternative for position 2-
46 54 2 323 314
INTEGRAL CASE RIGHT - PINIENGREENAlternative for position 2-
46 54 2 324 133
INTEGRAL CASE LEFT - ASTRALBLUEAlternative for position 2-
46 54 2 324 134
INTEGRAL CASE RIGHT - ASTRALBLUEAlternative for position 2-
46 54 2 324 135
INTEGRAL CASE LEFT - MYSTIKROTAlternative for position 2-
46 54 2 324 136
INTEGRAL CASE RIGHT - MYSTIKROTAlternative for position 2-
46 54 2 324 137
INTEGRAL CASE LEFT - SEIDENBLUEAlternative for position 2-
46 54 2 324 138
INTEGRAL CASE RIGHT - SEIDENBLUEAlternative for position 2-
46 54 2 324 625
INTEGRAL CASE LEFT - GRAPHITAlternative for position 2-
46 54 2 324 626
INTEGRAL CASE RIGHT - GRAPHITAlternative for position 2-
46 54 2 324 665
INTEGRAL CASE LEFT - MOREAGREENAlternative for position 2-
46 54 2 324 666
INTEGRAL CASE RIGHT - MOREAGREENAlternative for position 2-
46 54 2 324 757
INTEGRAL CASE LEFT - NAVARRAVIOLETTAlternative for position 2-
46 54 2 324 758
INTEGRAL CASE RIGHT - NAVARRAVIOLETTAlternative for position 2-
46 54 2 324 763
INTEGRAL CASE LEFT - FJORDGRAYAlternative for position 2-
46 54 2 324 764
INTEGRAL CASE RIGHT - FJORDGRAYAlternative for position 2-
3
46 54 2 316 333
HOUSING BOTTOM LEFT-
46 54 2 316 334
HOUSING BOTTOM RIGHTAlternative for position 3-
4
46 54 2 316 357
COVER LEFT - BLACK-
46 54 2 316 358
COVER RIGHT - BLACKAlternative for position 4-
46 54 2 323 641
COVER LEFT - CLASSICBLACKAlternative for position 4-
46 54 2 323 642
COVER RIGHT - CLASSICBLACKAlternative for position 4-
46 54 2 323 645
COVER LEFT - KOENIGSBLUEAlternative for position 4-
46 54 2 323 646
COVER RIGHT - KOENIGSBLUEAlternative for position 4-
46 54 2 323 647
COVER LEFT - REDAlternative for position 4-
46 54 2 323 648
COVER RIGHT - REDAlternative for position 4-
46 54 2 323 651
COVER LEFT - PINIENGREENAlternative for position 4-
46 54 2 323 652
COVER RIGHT - PINIENGREENAlternative for position 4-
46 54 2 323 851
COVER LEFT - MYSTIKROTAlternative for position 4-
46 54 2 323 852
COVER RIGHT - MYSTIKROTAlternative for position 4-
46 54 2 323 856
COVER RIGHT - ASTRALBLUEAlternative for position 4-
46 54 2 324 287
COVER LEFT - FJORDGRAYAlternative for position 4-
46 54 2 324 288
COVER RIGHT - FJORDGRAYAlternative for position 4-
46 54 2 324 503
COVER LEFT - GRAPHITAlternative for position 4-
46 54 2 324 504
COVER RIGHT - GRAPHITAlternative for position 4-
46 54 2 324 507
COVER LEFT - MOREAGREENAlternative for position 4-
46 54 2 324 508
COVER RIGHT - MOREAGREENAlternative for position 4-
46 54 2 324 511
COVER LEFT - NAVARRAVIOLETTAlternative for position 4-
46 54 2 324 512
COVER RIGHT - NAVARRAVIOLETTAlternative for position 4-
46 54 2 325 043
COVER LEFT - ASPENSILVERAlternative for position 4-
46 54 2 325 044
COVER RIGHT - ASPENSILVERAlternative for position 4-
