K1100LT (89V2) | Frame, Fairing, Cases

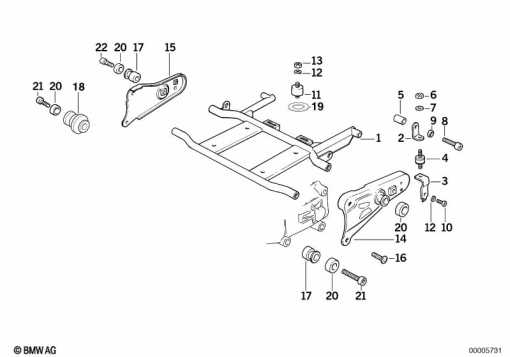

MOUNTING PARTS FOR FOOTPEG SYSTEM
Diagram #46_0233 | 27 parts | 2 available in shop
100%
Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 52 2 312 986 | HOLDER (08/92 to 07/93) | 1 | |
| 2 | 34 52 2 310 452 | SUPPORT (08/92 to 07/93) | 1 | |
| 2 | 34 52 2 312 620 | SUPPORT LEFT (08/92 to 07/93) | 1 | |
| 3 | 34 52 2 311 514 | SUPPORT LEFT (08/92 to 07/93) | 1 | |
| 3 | 34 52 2 312 615 | SUPPORT RIGHT (08/92 to 07/93) | 1 | |
| 4 | 61 21 2 305 050 | RUBBER MOUNTING (08/92 to 07/93) | 1 | |
| 5 | 34 52 2 312 624 | BUSH (08/92 to 07/93) | 1 | |
| 6 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI (08/92 to 07/93) | 1 | |
| 7 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (08/92 to 07/93) | 1 | |
| 8 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS (08/92 to 07/93) | 1 | |
| 9 | 07 11 9 904 826 | Washer | 1 | |
| 9 | 07 11 9 931 697 | WASHER - 8,4 (08/92 to 07/93) | 1 | |
| 10 | 07 12 9 905 867 | ISA SCREW - M6X12-8.8-ZNNIV (08/92 to 07/93) | 1 | |
| 11 | 34 52 2 312 621 | RUBBER MOUNTING (08/92 to 07/93) | 1 | |
| 12 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 12 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (08/92 to 07/93) | 1 | |
| 12 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 12 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV (08/92 to 07/93) | 1 | |
| 13 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI (08/92 to 07/93) | 1 | |
| 14 | 18 21 2 312 988 | BRACKET LEFT (08/92 to 07/93) | 1 | |
| 15 | 46 71 2 312 610 | BRACKET RIGHT (08/92 to 07/93) | 1 | |
| 17 | 46 71 2 312 992 | BUSH (08/92 to 07/93) | 1 | |
| 18 | 46 71 2 332 011 | BUSH (08/92 to 07/93) | 1 | |
| 19 | 52 53 1 453 322 | SHIM (08/92 to 07/93) | 1 | |
| 20 | 46 71 2 312 993 | RUBBER RING (08/92 to 07/93) | 1 | |
| 21 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS (08/92 to 07/93) | 1 | |
| 22 | 07 11 9 919 759 | FILLISTER-HEAD SCREW - M8X20 (08/92 to 07/93) | 1 |
