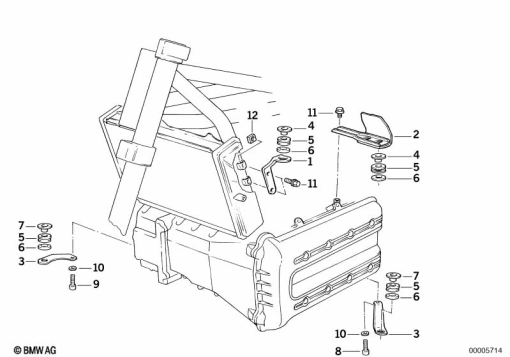

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 309 129 | BRACKET LEFT | - | |
46 63 2 309 130 | BRACKET RIGHTAlternative for position 1 | - | ||
| 2 | 46 63 2 309 917 | BRACKET UPPER LEFT | - | |
46 63 2 309 918 | BRACKET UPPER RIGHTAlternative for position 2 | - | ||
| 3 | 46 63 2 309 855 | BRACKET LOWER LEFT | - | |
46 63 2 309 856 | BRACKET LOWER RIGHTAlternative for position 3 | - | ||
| 4 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 5 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 6 | 46 63 1 451 278 | INSERT | - | |
| 7 | 46 63 1 455 129 | BUSH | - | |
| 8 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 9 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 | - | |
| 11 | 07 11 9 915 100 | HEX BOLT - M6X14-Z3-1 | - | |
| 12 | 07 11 9 904 050 | SQUARE NUT - M6 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
