K1100LT (89V2) | Frame, Fairing, Cases

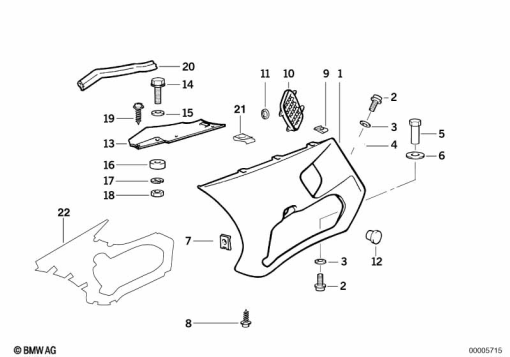

FAIRING SIDE SECTION
Diagram #46_0218 | 31 parts | 7 available in shop
100%
Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 309 865 | TRIM PANEL PRIME COATED LEFT | 1 | |
| 1 | 46 63 2 309 867 | TRIM PANEL LEFT - ROHTEIL / BLANK | 1 | |
| 1 | 46 63 2 309 866 | TRIM PANEL PRIME COATED RIGHT | 1 | |
| 1 | 46 63 2 309 868 | TRIM PANEL RIGHT - ROHTEIL / BLANK | 1 | |
| 2 | 07 11 9 907 582 | FILLISTER HEAD SCREW - M5X12-Z1 | 1 | |
| 3 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 4 | 61 13 1 372 033 | BODY NUT - M5 | 1 | |
| 5 | 46 63 1 453 960 | CAP NUT | 1 | |
| 6 | 07 14 6 977 329 | WASHER - 6,4X25X1,5 | 1 | |
| 7 | 07 12 9 925 727 | BODY NUT - ST3,9-5 (to 04/99) | 1 | |
| 7 | 07 14 7 133 884 | BODY NUT - M6 | 1 | |
| 8 | 46 63 2 309 853 | SHEET METAL SCREW - ST 4,2X13 | 1 | |
| 9 | 07 12 9 901 645 | BODY NUT - ST4,2-2ZNS | 1 | |
| 10 | 46 63 2 309 869 | GRID LEFT | 1 | |
| 10 | 46 63 2 309 870 | GRID, RIGHT | 1 | |
| 11 | 46 63 2 309 859 | 46 63 2 309 859 | 8 | |
| 12 | 46 63 2 309 394 | 0.01 | 1 | |
| 13 | 46 63 2 309 437 | COVERING LEFT | 1 | |
| 13 | 46 63 2 309 438 | COVERING RIGHT | 1 | |
| 14 | 07 11 9 913 980 | HEX BOLT - M6X30-Z3 | 1 | |
| 15 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 15 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 16 | 46 63 2 307 428 | WASHER | 1 | |
| 17 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 17 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 17 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90) | 1 | |
| 17 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | 1 | |
| 18 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | 1 | |
| 19 | 07 11 9 907 948 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,2X16-Z2 | 1 | |
| 20 | 46 63 2 309 436 | GASKET | 1 | |
| 21 | 61 13 1 925 120 | CLAMP | 1 |
