K1100LT (89V2) | Frame, Fairing, Cases

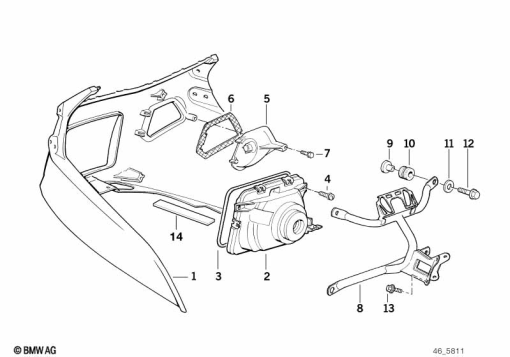

CASING UPPER PART/HEADLIGHT
Diagram #46_0216 | 18 parts | 8 available in shop
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 451 486 | TRIM UPPER PRIME COATED - WITHOUT LUFTKLAPPE | 1 | |
| 1 | 46 63 2 308 029 | TRIM UPPER PRIME COATED - WITH LUFTKLAPPEN | 1 | |
| 2 | 63 12 2 305 350 | HEADLIGHT | 1 | |
| 3 | 46 63 1 450 619 | GASKET | 1 | |
| 4 | 07 11 9 907 595 | FILLISTER HEAD SCREW - M5X12-Z3-1 | 1 | |
| 4 | 07 11 9 907 582 | FILLISTER HEAD SCREW - M5X12-Z1 | 1 | |
| 5 | 63 23 1 459 095 | LEFT TURN INDICATOR | 1 | |
| 5 | 63 23 1 459 096 | RIGHT TURN INDICATOR | 1 | |
| 6 | 63 23 1 459 149 | GASKET LEFT | 1 | |
| 6 | 63 23 1 459 474 | GASKET RIGHT | 1 | |
| 7 | 46 63 1 235 512 | SCREW | 1 | |
| 8 | 46 63 2 308 715 | HOLDER | 1 | |
| 9 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | 1 | |
| 10 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 11 | 62 21 1 244 072 | WASHER | 1 | |
| 12 | 84 21 0 300 311 | SET: NOT OFFERED BY BMW | 1 | |
| 13 | 07 11 9 900 033 | HEX BOLT WITH WASHER - M6X16-Z1-10.9 | 1 | |
| 14 | 46 63 2 307 497 | ANTI-SCUFFING - 560MM | 1 |
