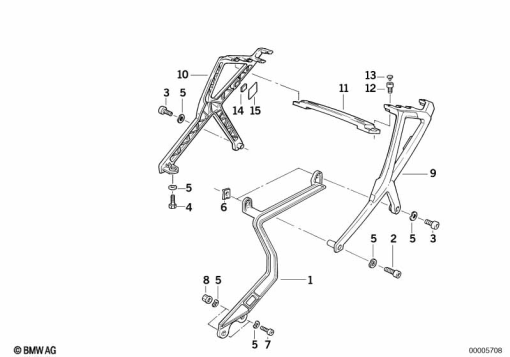

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 300 037 | LEFT CASE HOLDER | - | |
46 54 2 300 038 | CASE HOLDER RIGHTAlternative for position 1 | - | ||
| 3 | 07 12 9 904 259 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X35-8.8-ZNS3 | - | |
| 4 | 84 21 0 300 311 | SET: NOT OFFERED BY BMW | - | |
| 5 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90)Alternative for position 5 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 5 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 5 | - | ||
| 7 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
46 63 2 322 460 | FILLISTER HEAD WITH WASHER - M6X12-Z3-8.8Alternative for position 7 | - | ||
| 8 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 9 | 46 54 2 315 605 | BRACKET LEFT | - | |
| 10 | 46 54 2 315 606 | BRACKET RIGHT | - | |
| 11 | 46 54 2 315 602 | 172.18 | - | |
46 54 2 315 603 | ROD CENTERAlternative for position 11 | - | ||
| 13 | 46 54 2 315 618 | PROTECTION CAP BLACK | - | |
| 14 | 46 54 2 315 749 | BUMP STOP | - | |
| 15 | 46 54 2 315 901 | FOIL | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
