K1100LT (89V2) | Frame, Fairing, Cases

TOP CASE 35L

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #46_0210 | 44 parts | 1 available in shop

100%

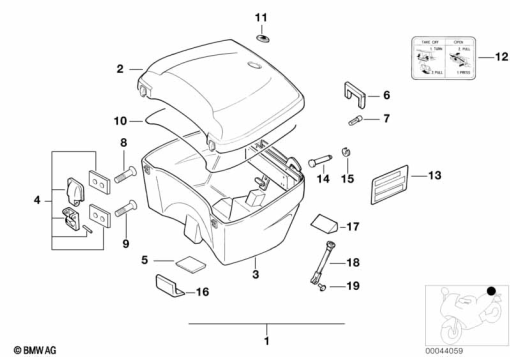

K1100LT (89V2) TOP CASE 35L exploded view parts diagram

Parts List (44)

#	Part Number	Description	Qty
1	46 54 2 316 287	TOP CASE WITH LOCK CYLINDER - 35L	1
1	46 54 2 323 230	TOP CASE - CLASSICBLACK	1
1	46 54 2 323 266	TOP CASE - KOENIGSBLUE	1
1	46 54 2 323 280	TOP CASE - RED	1
1	46 54 2 323 310	TOP CASE - PINIENGREEN	1
1	46 54 2 323 841	TOP CASE - MYSTIKROT	1
1	46 54 2 323 842	TOP CASE - SEIDENBLUE	1
1	46 54 2 323 843	TOP CASE - ASTRALBLUE	1
1	46 54 2 324 283	TOP CASE - FJORDGRAY	1
1	46 54 2 324 485	TOP CASE - GRAPHIT	1
1	46 54 2 324 486	TOP CASE - MOREAGREEN	1
1	46 54 2 324 487	TOP CASE - NAVARRAVIOLETT	1
1	46 54 2 325 011	TOP CASE - A.SILVER/MUSKAT	1
2	46 54 2 316 651	COVER - FJORDGRAY	1
2	46 54 2 323 231	COVER - CLASSICBLACK	1
2	46 54 2 323 267	COVER - KOENIGSBLUE	1
2	46 54 2 323 286	COVER - RED	1
2	46 54 2 323 311	COVER - PINIENGREEN	1
2	46 54 2 323 844	COVER - MYSTIKROT	1
2	46 54 2 323 845	COVER - SEIDENBLUE	1
2	46 54 2 323 846	COVER - ASTRALBLUE	1
2	46 54 2 324 488	COVER - GRAPHIT	1
2	46 54 2 324 489	COVER - MOREAGREEN	1
2	46 54 2 324 490	COVER - NAVARRAVIOLETT	1
3	46 54 2 315 613	BOTTOM PART	1
4	71 60 7 651 217	HINGE TOP CASE	1
5	46 54 2 316 319	BUMP STOP	1
6	46 54 2 315 616	HANDLE	1
7	51 25 1 455 108	LOCK (WITH KEY CODE)	1
7	51 25 1 455 109	LOCK CYLINDER WITH KEY	1
8	07 11 9 910 348	COUNTERSUNK HEAD SCREW - M5X16	1
9	07 11 9 910 350	COUNTERSUNK HEAD SCREW - M6X16	1
10	46 54 2 316 314	GASKET	1
11	46 54 2 300 045	BADGE	1
12	46 54 2 315 908	LABEL	1
13	71 21 2 312 802	HINWHITECHILD ZULADUNG SITZPLÄTZE	1
14	46 54 2 316 317	0.01	1
15	07 11 9 932 815	CIRCLIP - 3,2	1
15	12 11 8 030 576	CIRCLIP	1
16	46 54 2 316 457	SET: DISTANCE RUBBER	1
17	46 54 2 316 315	STOPPER	1
18	46 54 9 062 735	HOLDING STRAP (to 08/92)	1
18	46 54 2 300 441	HOLDING STRAP - L=180MM (from 08/92)	1
19	51 16 1 828 956	0.01	1
