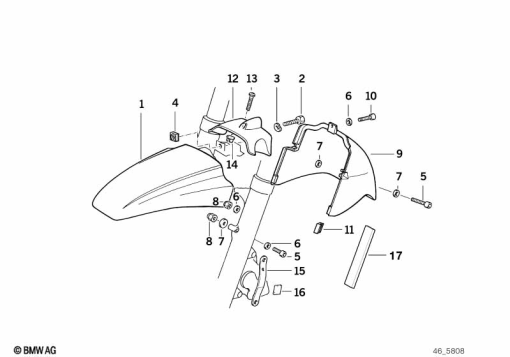

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 2 309 732 | FRONT WHEEL FENDER - ROHTEIL / BLANK | - | |
| 2 | 07 11 9 905 524 | HEX BOLT - M6X12-8.8-ZNNIV | - | |
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90) | - | |
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 3 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 3 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
| 4 | 07 11 9 904 050 | SQUARE NUT - M6 | - | |
| 5 | 07 12 9 903 809 | ISA SCREW - M6X40 | - | |
| 6 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 7 | 51 24 8 112 589 | WASHER | - | |
| 8 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 9 | 46 61 2 309 881 | MUDGUARD FRONT PRIME COATED | - | |
46 61 2 309 880 | FRONT WHEEL COVER, REAR - ROHTEIL / BLANKAlternative for position 9 | - | ||
| 11 | 46 61 2 309 379 | GASKET - 25MM | - | |
| 12 | 46 61 2 309 885 | COVERING CENTER | - | |
| 13 | 07 11 9 906 802 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,8X45-Z1 | - | |
| 14 | 52 53 1 451 393 | EXPANDING NUT | - | |
| 15 | 46 61 2 307 429 | HOLDER | - | |
| 16 | 16 11 2 313 042 | HOOK&LOOP FASTENER - 25X20 | - | |
| 17 | 46 63 1 453 980 | SEALING STRIP - 365X8X2MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
