K1100LT (89V2) | Frame, Fairing, Cases
RADIOTOR TRIM PANEL CENTER

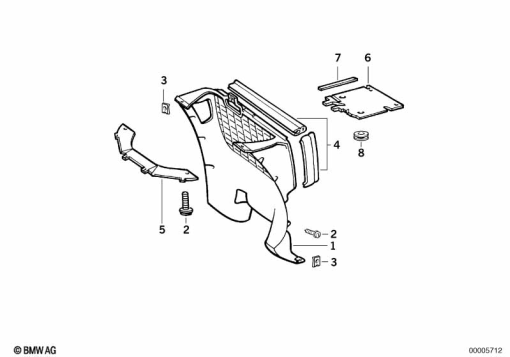

Diagram #46_0215 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 309 844 | RADIOTOR TRIM PANEL CENTER - ROHTEIL / BLANK | 1 | |
| 2 | 46 63 2 309 201 | SHEET METAL SCREW - ST 4,2X19 | 1 | |
| 3 | 07 12 9 901 645 | BODY NUT - ST4,2-2ZNS | 1 | |
| 4 | 46 63 2 309 288 | SEALING STRIP - 1150MM | 1 | |
| 5 | 46 63 2 309 265 | COVER - BLACK | 1 | |
| 6 | 46 63 2 309 169 | COVER | 1 | |
| 7 | 46 63 1 453 980 | SEALING STRIP - 365X8X2MM | 1 | |
| 8 | 51 23 1 817 626 | RUBBER GROMMET | 1 |
