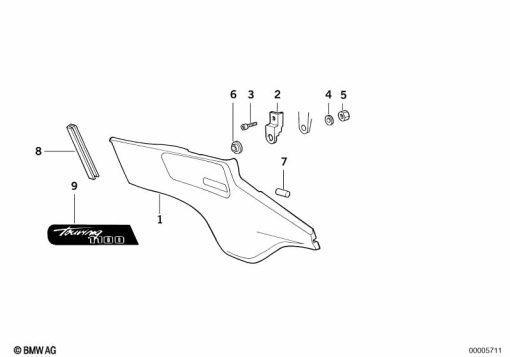

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 309 837 | BATTERY COVER LEFT - ROHTEIL / BLANK | - | |
46 63 2 309 838 | BATTERY COVER RIGHT - ROHTEIL / BLANKAlternative for position 1 | - | ||
| 2 | 46 63 2 309 919 | BRACKET LEFT | - | |
46 63 2 309 920 | BRACKET RIGHTAlternative for position 2 | - | ||
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
| 5 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 04/99) | - | |
| - | 07 11 9 936 426 | FLAT WASHER | - | |
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUTAlternative for position 5 | - | ||
| 6 | 46 63 1 453 144 | RUBBER GROMMET | - | |
| 7 | 16 13 1 455 350 | HOSE - 1000MM (meter) | - | |
46 63 1 452 400 | GROMMETAlternative for position 7 | - | ||
| 8 | 46 63 2 309 948 | GASKET - 100MM | - | |
| 9 | 51 14 2 309 431 | STICKER LEFT - TOURING 1100 | - | |
51 14 2 309 432 | STICKER RIGHT - TOURING 1100Alternative for position 9 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
