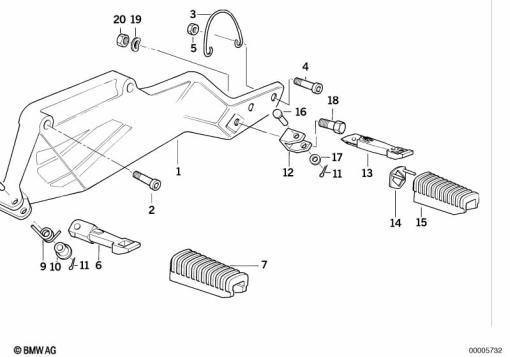

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 321 242 | PLATE RIGHT BLACK RIB UNPAINTED (from 08/92) | - | |
46 71 2 321 241 | PLATE LEFT BLACK RIB UNPAINTED (from 07/93)Alternative for position 1 | - | ||
46 71 2 325 567 | PLATE LEFT FJORDGRAY RIB UNPAINTED (from 11/96)Alternative for position 1 | - | ||
46 71 2 325 568 | PLATE RIGHT FJORDGRAY RIB UNPAINTED (from 11/96)Alternative for position 1 | - | ||
| 2 | 46 71 2 332 006 | FILLISTER-HEAD SCREW - M10X20-8.8ZNS (from 08/92) | - | |
| 6 | 46 71 1 454 253 | FOOTREST, LEFT (from 08/92) | - | |
46 71 1 454 254 | FOOTREST, RIGHT (from 08/92)Alternative for position 6 | - | ||
| 7 | 46 71 1 454 887 | BUSHING (from 08/92) | - | |
| 8 | 46 71 1 451 220 | PIN - 8X55 (from 08/92) | - | |
| 9 | 46 71 1 451 643 | RETAINER SPRING LEFT (from 08/92) | - | |
46 71 1 451 644 | RETAINER SPRING RIGHT (from 08/92)Alternative for position 9 | - | ||
| 10 | 46 71 1 451 632 | SLEEVE (from 08/92) | - | |
| 11 | 07 11 9 905 230 | SPLIT PIN - 2X16 (from 08/92) | - | |
| 12 | 46 71 2 310 259 | SUPPORTING BRACKET - BLACK (from 08/92) | - | |
| 13 | 46 71 2 310 403 | FOOTREST, REAR LEFT (from 08/92) | - | |
46 71 2 310 404 | FOOTREST, REAR RIGHT (from 08/92)Alternative for position 13 | - | ||
| 14 | 46 71 7 687 107 | THRUST WASHER, LEFT | - | |
46 71 7 687 108 | THRUST WASHER, RIGHTAlternative for position 14 | - | ||
| 15 | 46 71 2 310 401 | FOOTREST RUBBER (from 08/92) | - | |
| 16 | 46 71 7 717 831 | PIN - D=8MM/L=36MM (from 08/92) | - | |
| 17 | 07 14 9 180 923 | WASHER - 8,4X18X2MM (from 08/92) | - | |
| 18 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS (from 08/92) | - | |
| 19 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 (from 08/92) | - | |
| 20 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 (from 08/92) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
