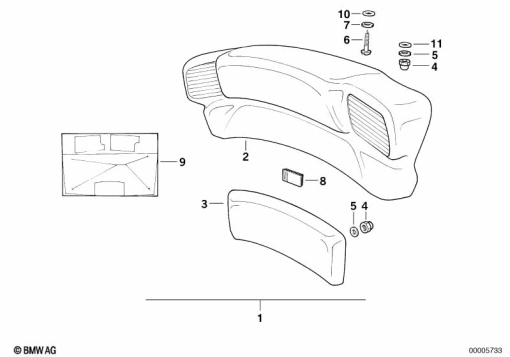

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 2 316 730 | SET: RETROFIT KIT FOR BACKREST, BLACK - 35L | 1 | |
| 2 | 46 54 2 316 666 | BACKREST, BLACK - 35L | 1 | |
| 1 | 71 60 2 316 737 | TEMPLATE | 1 | |
| 1 | 16 11 2 315 504 | SEALING COMPOUND - T33 | 1 | |
| 3 | 46 54 2 316 349 | BACKREST, BLACK - 35L | 1 | |
| 4 | 07 11 9 900 327 | CAP NUT - M5 | 1 | |
| 5 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 6 | 07 11 9 900 425 | SHEET METAL SCREW - 6,3X38 | 1 | |
| 7 | 07 11 9 931 087 | WASHER - 6,4 | 1 | |
| 8 | 16 11 2 313 042 | HOOK&LOOP FASTENER - 25X20 | 1 | |
| 9 | 46 54 2 316 430 | TEMPLATE | 1 | |
| 9 | 71 60 2 316 737 | TEMPLATE | 1 | |
| – | 46 54 2 316 666 | BACKREST, BLACK - 35L | 1 | |
| 10 | 07 11 9 903 045 | O-RING - 6,3X2,4 | 1 | |
| 11 | 07 11 9 906 351 | O-RING - 5X1,8 | 1 |
