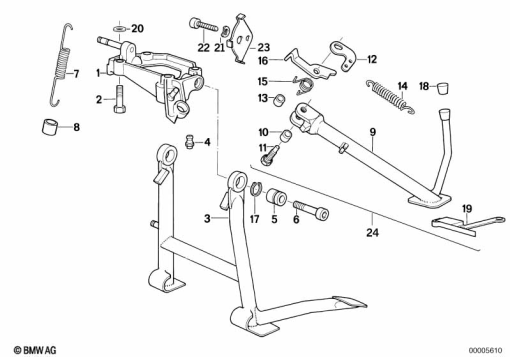

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 2 311 150 | SUPPORTING BRACKET | - | |
| 2 | 46 52 2 312 104 | FILLISTER-HEAD SCREW - M10X50 | - | |
| 3 | 46 52 2 311 490 | CENTER STAND | - | |
| 4 | 23 41 1 238 306 | NIPPLE | - | |
| 5 | 46 52 2 311 493 | SLEEVE | - | |
| 6 | 46 52 1 454 158 | COUNTERSUNK HEAD SCREW - M10X50-8.8 | - | |
| 7 | 46 52 1 450 075 | TENSION SPRING | - | |
| 8 | 46 52 1 237 786 | RUBBER GROMMET | - | |
| 9 | 46 53 2 312 787 | SIDE STAND | - | |
| 10 | 46 53 2 312 079 | BUSH BEARING WITH LUBRICATING NIPPLE | - | |
| 11 | 46 53 2 310 465 | HEX BOLT | - | |
| 12 | 46 53 1 454 246 | SHACKLE | - | |
| 13 | 46 53 2 310 473 | BUSHING - 16X10,2X12,2 | - | |
| 14 | 46 53 1 450 989 | TENSION SPRING | - | |
| 15 | 46 53 2 311 037 | SPRING | - | |
| 16 | 46 53 2 312 072 | LEVER | - | |
| 17 | 07 11 9 934 132 | LOCK RING - 20X1,2 | - | |
| 18 | 46 53 2 312 966 | 0.02 | - | |
| 19 | 61 31 1 459 959 | SWITCH | - | |
| 20 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | - | |
46 52 2 312 703 | BUSHAlternative for position 20 | - | ||
| 21 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90)Alternative for position 21 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 21 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 21 | - | ||
| 23 | 61 13 2 305 199 | HOLDER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
