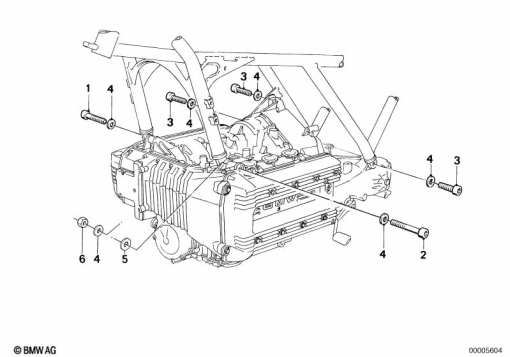

Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 901 107 | FILLISTER-HEAD SCREW - M10X60-8.8 | - | |
| 2 | 07 11 9 905 509 | FILLISTER-HEAD SCREW - M10X90-ZNS3 | - | |
| 3 | 07 12 9 904 159 | FILLISTER HEAD SCREW - M10X35-8.8-ZNS3 | - | |
| 4 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
46 71 2 311 545 | SHIMAlternative for position 4 | - | ||
46 71 2 312 776 | SHIMAlternative for position 4 | - | ||
| 5 | 46 71 2 311 547 | SHIM - 1,00MM | - | |
46 71 2 311 548 | SHIM - 1,25MMAlternative for position 5 | - | ||
46 71 2 311 549 | SHIM - 1,50MMAlternative for position 5 | - | ||
46 71 2 311 550 | SHIM - 1,75MMAlternative for position 5 | - | ||
46 71 2 311 551 | SHIM - 2,00MMAlternative for position 5 | - | ||
46 71 2 311 552 | SHIM - 2,25MMAlternative for position 5 | - | ||
46 71 2 311 553 | SHIM - 2,50MMAlternative for position 5 | - | ||
46 71 2 311 554 | SHIM - 2,75MMAlternative for position 5 | - | ||
46 71 2 311 555 | SHIM - 3,00MMAlternative for position 5 | - | ||
46 71 2 311 556 | SHIM - 3,25MMAlternative for position 5 | - | ||
46 71 2 311 557 | SHIM - 3,50MMAlternative for position 5 | - | ||
46 71 2 311 558 | SHIM - 3,75MMAlternative for position 5 | - | ||
46 71 2 311 559 | SHIM - 4,00MMAlternative for position 5 | - | ||
46 71 2 311 560 | SHIM - 4,25MMAlternative for position 5 | - | ||
46 71 2 311 561 | SHIM - 4,50MMAlternative for position 5 | - | ||
46 71 2 311 562 | SHIM - 4,75MMAlternative for position 5 | - | ||
46 71 2 311 563 | SHIM - 5,00MMAlternative for position 5 | - | ||
46 71 2 311 564 | SHIM - 5,25MMAlternative for position 5 | - | ||
46 71 2 311 565 | SHIM - 5,50MMAlternative for position 5 | - | ||
46 71 2 312 160 | SHIM - 0,50MMAlternative for position 5 | - | ||
46 71 2 312 161 | SHIM - 0,75MMAlternative for position 5 | - | ||
| 6 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | - |
