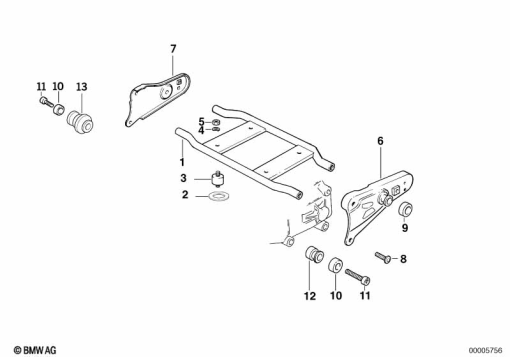

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 321 239 | HOLDER (from 07/93) | - | |
| 2 | 52 53 1 453 322 | SHIM (from 07/93) | - | |
| 3 | 34 52 2 312 621 | RUBBER MOUNTING (from 07/93) | - | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (from 07/93)Alternative for position 4 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 4 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV (from 07/93)Alternative for position 4 | - | ||
| 5 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI (from 07/93) | - | |
| 6 | 18 21 2 332 042 | BRACKET LEFT (from 07/93) | - | |
| 7 | 46 71 2 332 044 | BRACKET RIGHT (from 07/93) | - | |
| 8 | 46 71 2 351 538 | FILLISTER HEAD SCREW - M8X20-A2-80 SW (from 07/93) | - | |
| 9 | 46 71 2 332 036 | RUBBER RING (from 07/93) | - | |
| 10 | 46 71 2 312 993 | RUBBER RING (from 07/93) | - | |
| 11 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS (from 07/93) | - | |
| 12 | 46 71 2 312 992 | BUSH (from 07/93) | - | |
| 13 | 46 71 2 332 011 | BUSH (from 07/93) | - |
