K1100LT (89V2) | Engine

PISTON

Diagram #11_1772 | 7 parts

100%

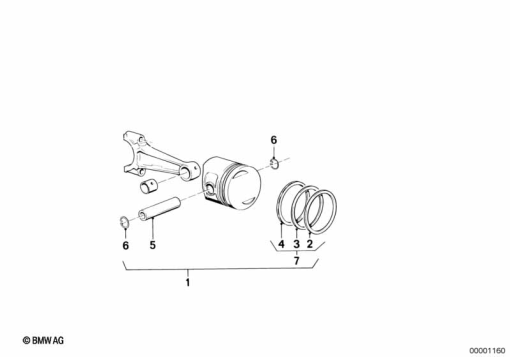

K1100LT (89V2) PISTON exploded view parts diagram

Parts List (7)

#Part NumberDescriptionQty
1
11 25 1 464 340
PISTON - 70,5 A KH 51 MM (to 08/92)-
11 25 1 464 341
PISTON - 70,5 B KH 51 MM (to 08/92)Alternative for position 1-
11 25 1 464 477
PISTON - 70,5 A KH 45 MM (from 08/92)Alternative for position 1-
11 25 1 464 598
PISTON - 70,5 B KH 45 MM (from 08/92)Alternative for position 1-
5
11 25 1 464 475
GUDGEON PIN-
6
11 25 1 460 596
SNAP RING-
7
11 25 1 464 586
SET: REPAIR KIT PISTON RINGS-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
