K1100LT (89V2) | Engine
CONNECTING ROD / CONNECTING ROD BEARING

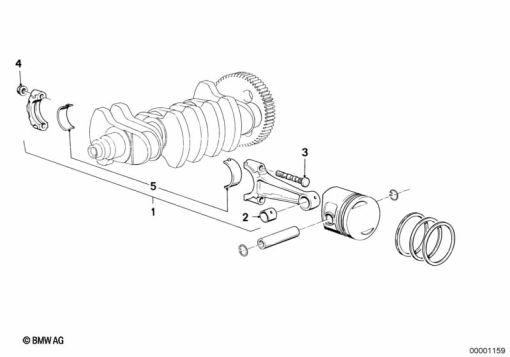

Diagram #11_1771 | 15 parts | 6 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 24 1 464 375 | CONNECTING ROD - 420G PL 125 MM (to 08/92) | 1 | |
| 1 | 11 24 1 464 376 | CONNECTING ROD - 424G PL 125 MM (01/92 to 08/92) | 1 | |
| 1 | 11 24 1 464 377 | CONNECTING ROD - 428G PL 125 MM (01/92 to 08/92) | 1 | |
| 1 | 11 24 1 464 574 | CONNECTING ROD - 421G PL 131 MM (from 08/92) | 1 | |
| 1 | 11 24 1 464 575 | CONNECTING ROD - 425G PL 131 MM (from 08/92) | 1 | |
| 1 | 11 24 1 464 576 | CONNECTING ROD - 429G PL 131 MM (from 08/92) | 1 | |
| 2 | 11 24 1 460 341 | CONNECTING ROD BUSH | 1 | |
| 3 | 11 24 1 464 384 | CONNECTING ROD BOLT (from 01/92) | 1 | |
| 4 | 11 24 1 460 345 | 0.01 | 1 | |
| 5 | 11 24 1 460 067 | BEARING SHELL YELLOW - STAGE 0 | 1 | |
| 5 | 11 24 1 460 714 | BEARING SHELL YELLOW - STAGE 1 | 1 | |
| 5 | 11 24 1 460 787 | BEARING SHELL GREEN - STAGE 0 | 1 | |
| 5 | 11 24 1 460 788 | BEARING SHELL GREEN - STAGE 1 | 1 | |
| 5 | 11 24 1 460 913 | BEARING SHELL WHITE - STAGE 0 | 1 | |
| 5 | 11 24 1 460 914 | BEARING SHELL WHITE - STAGE 1 | 1 |
