K1100LT (89V2) | Engine

SHORT ENGINE/CRANK CASE WITH PISTONS

Diagram #11_1780 | 3 parts

100%

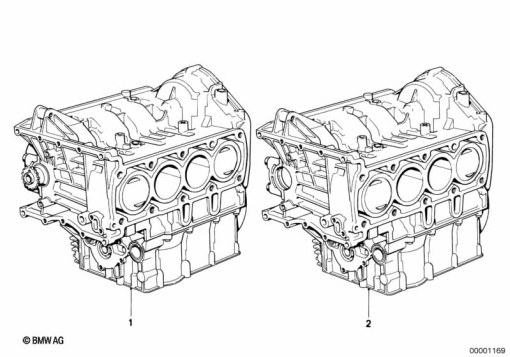

K1100LT (89V2) SHORT ENGINE/CRANK CASE WITH PISTONS exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
11 00 1 464 675
POWER PLANT WITH PISTONS AND CRANKSHAFT - 1100CCM1
2
11 00 1 464 594
ENGINE BLOCK WITH PISTON - KOLBENHÖHE 51MM (to 08/92)1
2
11 00 1 464 676
ENGINE BLOCK WITH PISTON (from 08/92)1
