K1100LT (89V2) | Engine Electrics

IGNITION SYSTEM

Diagram #12_0770 | 33 parts

100%

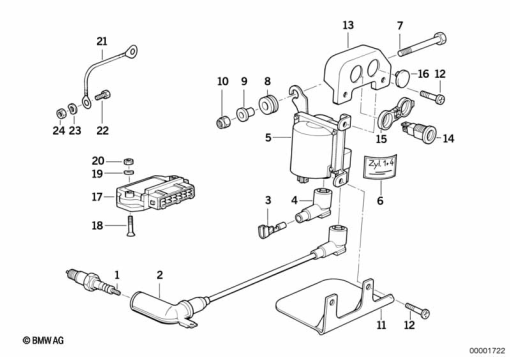

K1100LT (89V2) IGNITION SYSTEM exploded view parts diagram

Parts List (33)

#Part NumberDescriptionQty
1
12 12 1 465 104
SPARK PLUG - XR7LDC-
2103-0525
NGK DCPR7EIXSOLIDAlternative for position 1-
2
12 12 2 305 041
IGNITION WIRE 1 - BERU-
12 12 2 305 042
IGNITION WIRE 2 - BERUAlternative for position 2-
12 12 2 305 043
IGNITION WIRE 3 - BERUAlternative for position 2-
12 12 2 305 044
IGNITION WIRE 4 - BERUAlternative for position 2-
3
12 12 1 705 656
CIRCULAR CONNECTOR-
4
12 12 1 289 840
SUPPRESSING SOCKET-
5
12 13 1 459 890
IGNITION COIL-
6
71 21 2 305 187
LABEL - ZYL.1+4-
71 21 2 305 188
LABEL - ZYL.2+3Alternative for position 6-
7
07 11 9 912 364
HEX BOLT - M6X85-
8
31 42 1 235 615
RUBBER GROMMET-
9
63 12 7 727 887
COLLAR BUSH - 18X6,1X8-ZNNIV-
10
07 12 9 922 705
SELF-LOCKING HEX NUT - M6-10 ZN (to 04/99)-
07 14 7 575 163
SELF-LOCKING HEX NUTAlternative for position 10-
07 14 7 575 163
SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 10-
11
12 13 1 459 795
COVER-
12
07 11 9 907 582
FILLISTER HEAD SCREW - M5X12-Z1-
13
61 13 2 305 184
HOLDER-
14
61 13 1 391 630
PLUG-IN SOCKET-
16
12 13 1 459 529
PLUG-
17
12 14 1 461 441
CONTROL UNIT (to 07/93)-
18
07 11 9 928 108
COUNTERSUNK HEAD SCREW - M 4 X 25 (to 07/93)-
19
07 11 9 932 033
WAVE WASHER - B4 (to 07/93)-
20
07 11 9 922 854
HEX NUT - M4-A2-70 (to 07/93)-
21
12 31 1 358 130
GROUND CABLE (to 07/93)-
22
07 11 9 913 218
HEX BOLT - M5X10 (to 07/93)-
23
07 11 9 932 098
WAVE WASHER - B5 (to 07/93)-
24
07 11 9 905 729
HEX NUT-
07 11 9 922 035
HEX NUTAlternative for position 24-
07 11 9 922 036
HEX NUTAlternative for position 24-
07 11 9 905 729
HEX NUT - M5-8-ZNNIV SI (to 07/93)Alternative for position 24-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
