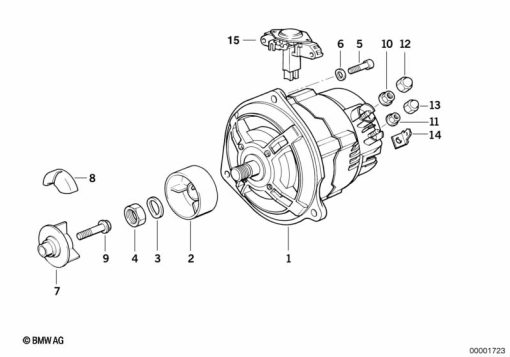

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 31 2 306 020 | ALTERNATOR - 50A (from 09/92) | 1 | |
| 2 | 12 31 2 305 329 | CLUTCH HOUSING (from 09/92) | 1 | |
| 3 | 07 11 9 933 155 | SPRING WASHER - B16 (from 09/92) | 1 | |
| 4 | 12 31 1 459 814 | HEX NUT - M16X1,5 (from 09/92) | 1 | |
| 5 | 07 12 9 904 067 | ISA SCREW - M8X30-8.8-ZNS3 (from 09/92) | 1 | |
| 6 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 (from 09/92) | 1 | |
| 7 | 12 31 1 460 304 | DRIVING DOG (from 09/92) | 1 | |
| 8 | 12 31 1 464 877 | RUBBER MOUNTING (from 09/92) | 1 | |
| 9 | 12 31 1 461 463 | SCREW - M8X40 (from 09/92) | 1 | |
| 10 | 07 14 9 125 856 | HEX NUT - M8 (09/92 to 08/93) | 1 | |
| 11 | 07 14 1 732 625 | FLANGE NUT - M5 (from 09/92) | 1 | |
| 12 | 46 51 1 234 785 | PROTECTION CAP - M8 (from 09/92) | 1 | |
| 13 | 12 31 2 306 324 | CAP - M5 (from 09/92) | 1 | |
| 14 | 12 31 2 306 358 | FLAT-TYPE CONNECTOR (from 09/92) | 1 | |
| 15 | 12 31 1 739 365 | VOLTAGE REGULATOR (from 09/92) | 1 |
