Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 21 0 403 224 | BATTERY | - | |
61 21 2 346 800 | BATTERY, MAINTENANCE-FREE - 12V 19AHAlternative for position 1 | - | ||
| 2 | 61 21 7 914 822 | SET: SCREW SET | - | |
| 3 | 61 21 7 914 822 | SET: SCREW SET | - | |
| 4 | 61 21 7 914 822 | SET: SCREW SET | - | |
| 5 | 61 21 7 914 822 | SET: SCREW SET | - | |
| 7 | 61 21 1 459 099 | COVERING CAP - + POL | - | |
| 8 | 61 21 1 459 106 | BLIND PLUG | - | |
| 9 | 61 21 1 459 743 | HOSE CONNECTOR | - | |
| 10 | 61 21 2 306 299 | HOSE - 1000 MM | - | |
| 12 | 61 21 2 305 189 | BATTERY HOLD DOWN - BLACK (06/91 to 07/93) | - | |
| 13 | 61 21 2 305 050 | RUBBER MOUNTING (to 08/92) | - | |
34 52 2 312 621 | RUBBER MOUNTING (08/92 to 07/93)Alternative for position 13 | - | ||
| 15 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 07/93)Alternative for position 15 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 15 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV (to 07/93)Alternative for position 15 | - | ||
| 17 | 61 21 1 459 087 | BUMP STOP (to 07/93) | - | |
| 18 | 61 21 2 310 595 | HOLDER (to 07/93) | - | |
| 19 | 07 11 9 920 004 | FILLISTER-HEAD SCREW - M5X12 (to 07/93) | - | |
| 20 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (to 07/93) | - | |
| 21 | 61 21 1 459 734 | SCREW - M6X178 (to 07/93) | - | |
61 21 2 310 918 | SCREW - M6X185 (to 07/93)Alternative for position 21 | - |

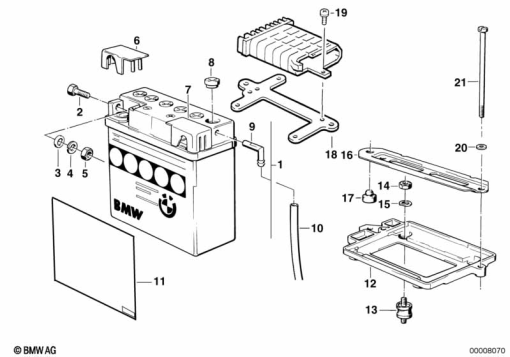

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
